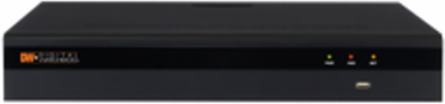

Digital Watchdog DW-VP163T16P VMAX® IP Plus 16-channel NVR
- MPN: DW-VP163T16P
- PPN: DWD-DW-VP163T16P
CAD
$2102.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The VMAX® IP Plus™ is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! The NVR offers unique features such as CCIP™ camera encryption and internal systems diagnostics, keeping your system healthy, secure and up to date. Combine with the DW Witness™ app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR. Combine your VMAX IP Plus with DW Spot™ Monitoring Modules for public view monitors. Each NVR can support up to 16 remote connections and share a maximum of 64 channels simultaneously.
Features
- Complete installation, set up and camera configuration in under three minutes!
- CCIP™ system encryption protects your surveillance system from out of network attacks
- Record and manage single-sensor IP cameras up to 4K (3840×2160), with 160Mbps maximum throughput
- Local power for up to 16 IP cameras via resident PoE switch
- DW Witness™ turns a smartphone or tablet into an additional surveillance camera
- PathFinder™ Peer-to-Peer (P2P) remote connection
- HTTPS encryption supported
- Automatic device discovery
- Control any ONVIF camera’s set up and features remotely
- 0TB-32TB storage options
- Snapshot Notify™ - camera notifications sent to an email or CMS
- C3™ CMS and event server software up to 144 Channels
- Event notifications via email, text and C3™ CMS and push notifications to mobile devices
- Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
- Dual-stream recording
- Easy drag and drop camera management
- Instant backup during playback
- Full HD output for local live and playback display, up to 4K (3840×2160)
- Complete system analysis with real-time system, network and PoE status monitoring
- True HD and VGA simultaneous output support

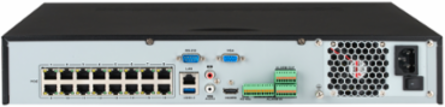

- 4 sensor input, 1 alarm relay output (3rd generation HW)

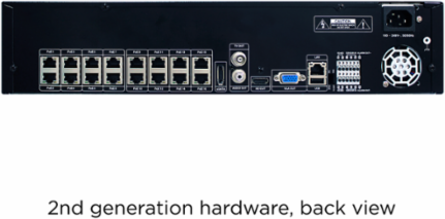

- 16 sensor input, 4 alarm relay output (2nd generation HW)
- Transaction verification via TCP and USB-serial
- Email event notifications with video clip
- Simple and free DDNS support for remote management
- Easy web-based client with multi-user access
- Advanced H.264 Linux embedded NVR
- Simultaneous live, playback, recording, back-up and network
- NVR health check with email notification
- NVR calculation and auto-recording configuration
- Help menu on major functions
- Add public view monitors with Spot Monitoring Modules
- Auto or manual firmware upgrade available
- Automatic private IP addressing
- NTP (network time protocol)
- Screen saver to protect monitor screen
- Import/export configuration between multiple NVRs
- USB mouse and GUI control
- 5 year limited warranty
- Note - ONVIF conformant fisheye cameras will be recognized in VMAX IP Plus NVRs, but image dewarping capabilities are not included.
Documentation & Downloads
Specifications
Key Specifications
- Supported Cameras
- Up to 16 IP cameras
- Operating system
- Embedded Linux®
- No. of PoE
- 16 Ch
- Communication protocol
- ONVIF®
- Speed
- x1, x2, x4, x8, x16, x32, x64, x100
- Monitor
- True HD and VGA
- Recording speed
- Up to 480fps up to 4K resolution
- Max. HDD bay
- 4 x SATA HDD, up to 32TB
- Function
- Intelli-search by time bar, calendar (date and time) and event search
- Alarm input/relay output
- 16Ch inputs / 4Ch outputs
- Transaction verification
- TCP and USB-serial interface
- Backup device
- Local backup by USB, network backup by CMS
- Firmware upgrade
- FTP, USB
- Special features
- Local PoE switch, Quick Setup under 3 minutes, Snapshot Notify™ - Programmable interval camera image verification sent to an email, Event notifications via email, text and C3™ CMS and push notifications to mobile devices, Real-time temp alert, Digital Zoom in live and playback
- System operation
- IR remote controller (optional), USB mouse, PTZ control by keyboard (optional)
- Total PoE Power Budget
- 150W
- Power consumption
- 300 W total power budget, 5.5A, 9.37W per PoE channel (simultaneous)
- Dimension (WxDxH)
- 17.32” x 15.66” x 2.79” (440 × 397.8 ×71 mm), 1.5U
- Warranty
- 5 year limited
Storage Size3TB
Channel16 Channel (DW-PVX16W multi-sensor IP camera uses 4 channels in the recorder, one per sensor).
Max supported resolutionIP camera max. 4K (3840×2160)
PoE type1Gbps, 802.3af
Screen mode1, 4, 9 and 16
resolution1024x768, 1280x720, 1280x1024, 1920x1080, 2560x1600, 3840×2160 (4K)
Max. throughput160 Mbps
Recording resolutionDual-stream
Audio output1 Ch
PTZ controlRS-485, ONVIF
LAN1x gigabit ethernet (RJ45) – fixed IP, DHCP and DDNS
System recovery after power failureAuto-reboot and journaling file system
Back-upRemote, USB
Health checkReal-time system, network and PoE status monitoring
Power requirements110~240V A/C
Max. Power per Port30W
Operating temperature and humidity41~104 °F (5~40 °C) / 20~90% RH
CertificationCE, FCC, KCC, WEEE, RoHS
