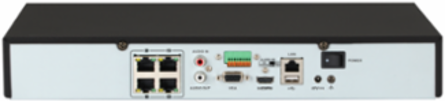

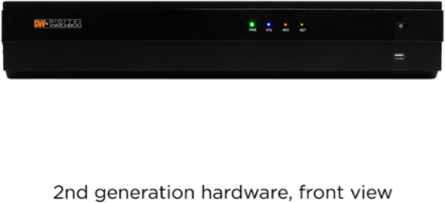

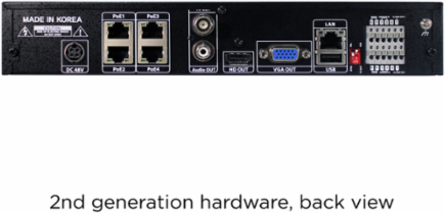

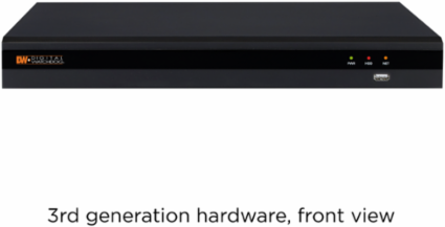

Digital Watchdog DW-VP92T4P VMAX IP Plus 4-Channel PoE NVR, 4K Resolution, 80 Mbps Throughput
- MPN: DW-VP92T4P
- PPN: DWD-DW-VP92T4P
CAD
$948.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Experience cutting-edge surveillance technology with the VMAX IP PlusTM 4-channel PoE NVR, designed by Digital Watchdog. This advanced network video recorder supports up to 9 IP cameras and offers seamless integration with a variety of features, including dual-stream recording and real-time health checks for system and network status. With an impressive maximum throughput of 80 Mbps and the ability to record at resolutions up to 4K, this NVR ensures high-quality video capture and playback.
Equipped with a user-friendly web-based client and the ability to manage camera settings remotely, this device simplifies installation and configuration, allowing you to set up your surveillance system in under three minutes. The built-in PoE switch provides local power for up to four cameras, while event notifications and Snapshot NotifyTM features keep you informed of any activity. With a robust 5-year limited warranty and multiple backup options, the VMAX IP PlusTM is a reliable choice for both residential and commercial security needs.
Features
- Complete installation, set up and camera configuration in under three minutes!
- CCIP™ system encryption protects your surveillance system from out of network attacks
- Record and manage single-sensor IP cameras up to 4K (3840×2160), with 80Mbps maximum throughput*
- Local power for up to 4 IP cameras via resident PoE switch
- DW Witness™ turns a smartphone or tablet into an additional surveillance camera
- PathFinder™ Peer-to-Peer (P2P) remote connection
- HTTPS encryption supported
- Automatic device discovery
- Control any ONVIF camera’s set up and features remotely
- 0TB-32TB storage options
- Snapshot Notify™ - camera notifications sent to an email or CMS
- C3™ CMS and event server software up to 144 Channels
- Event notifications via email, text and C3™ CMS and push notifications to mobile devices
- Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
- Dual-stream recording
- Easy drag and drop camera management
- Instant backup during playback
- Full HD output for local live and playback display up to 4K (3840×2160)
- Complete system analysis with real-time system, network and PoE status monitoring
- True HD and VGA simultaneous output support
- 4 sensor input, 1 alarm relay output
- Transaction verification via TCP and USB-serial
- Email event notifications with video clip
- Simple and free DDNS support for remote management
- Easy web-based client with multi-user access
- Advanced H.264 Linux embedded NVR
- Simultaneous live, playback, recording, back-up and network
- NVR health check with email notification
- NVR calculation and auto-recording configuration
- Help menu on major functions
- Add public view monitors with Spot Monitoring Modules
- Auto or manual firmware upgrade available
- Automatic private IP addressing
- NTP (network time protocol)
- Screen saver to protect monitor screen
- Import/export configuration between multiple NVRs
- USB mouse and GUI control
- 5 year limited warranty
- Note - ONVIF conformant fisheye cameras will be recognized in VMAX IP Plus NVRs, but image dewarping capabilities are not included.
Documentation & Downloads
Specifications
Key Specifications
| Supported Cameras | Up to 9 IP cameras |
|---|---|
| Operating system | Embedded Linux® |
| No. of PoE | 4 Ch |
| Communication protocol | ONVIF® |
| Speed | x1, x2, x4, x8, x16, x32, x64, x100 |
| Monitor | True HD and VGA |
| Recording speed | Up to 270fps up to 5MP resolution |
| Max. HDD bay | 1 x SATA HDD |
| Function | Intelli-search by time bar, calendar (date and time) and event search |
| Alarm input/relay output | 4 Ch/ 1 Ch |
| Transaction verification | TCP and USB-serial interface |
| Backup device | Local backup by USB, network backup by CMS |
| Firmware upgrade | FTP, USB |
| Special features | Local PoE switch, Quick Setup under 3 minutes, Snapshot Notify™ - Programmable interval camera image verification sent to an email, Event notifications via email, text and C3™ CMS and push notifications to mobile devices, Real-time temp alert, Digital Zoom in live and playback |
| System operation | IR remote controller (optional), USB mouse, PTZ control by keyboard (optional) |
| Power consumption | 90.24W total power budget, 1.88A, 15.4W per PoE channel |
| Dimension (WxDxH) | 10.39 x 9.65 x 1.73 Inch (264 x 245 x 44 mm) |
| Warranty | 5 year limited |
| Storage Size | 2TB |
|---|---|
| Channel | 9 Channel (DW-PVX16W multi-sensor IP camera uses 4 channels in the recorder, one per sensor). |
| Max supported resolution | IP camera max. 5MP (2592 x 1920), fisheye dewarping not supported |
| PoE type | 1Gbps, 802.3af |
| Screen mode | 1, 4 and 9 |
| resolution | True HD output - 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080 |
| Max. throughput | 80 Mbps |
| Recording resolution | Dual-stream |
| Audio output | 1 Ch |
| PTZ control | RS-485, ONVIF |
| LAN | 1x gigabit ethernet (RJ45) – fixed IP, DHCP and DDNS |
| System recovery after power failure | Auto-reboot and journaling file system |
| Back-up | Remote, USB |
| Health check | Real-time system, network and PoE status monitoring |
| Power requirements | 48V DC |
| Operating temperature and humidity | 41~104 °F (5~40 °C) / 20~90% RH |
| Certification | CE, FCC, KCC, WEEE, RoHS |
