Killark

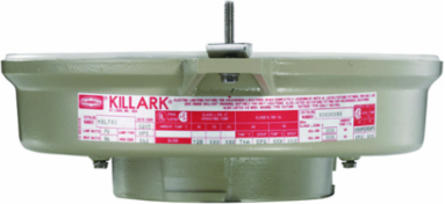

Killark VQ1F8430 Aluminum 84 Watt Compact Fluorescent Light Fixture 14.06 Inch x 6 Inch 120-277V

Aluminum 84 Watt Compact Fluorescent Light Fixture 14.06 Inch x 6 Inch 120-277V
  • MPN: VQ1F8430
  • UPC: 783936076799
  • PPN: HBL-VQ1F8430
  • UNSPSC: 39111612

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2432.55/ EA

Description

VQ1F Series - Aluminum 84 Watt Compact Fluorescent Light Fixture (Two 42W Lamps Included) - 120-277V At 50/60 Hz - Optic Thread Size 5-1/2Inch

Features

  • World Voltage Ballast 120 through 277 VAC 50/60Hz
  • Six mounting splice box types: Pendant, Ceiling, Wall bracket, Cone Top, 25° Angle Stanchion, Straight Stanchion – in a variety of entry sizes, including M20 for the VMX ceiling style.
  • Elevated ambients to 55°C 13W – 64W
  • Two lamp models have 2 ballasts for separate switching or system redundancy
  • Normally shipped as components for fast delivery, or may be ordered factory assembled.
  • Options for Fuses and Quick Disconnect
  • Tank assemblies include quad-pin lamp
  • World Voltage ballast 120-277 VAC 50/60 Hz. Elevated ambients to 55°C 13W-64W. Two lamp models have 2 ballasts for separate switching or system redundancy. Normally shipped as components for fast delivery. Tank assemblies include quad-pin lamp.

Specifications

Specifications

Fixture Finish
Powder Epoxy Paint
Special Features
World Voltage ballast 120-277 VAC 50/60 Hz. Elevated ambients to 55°C 13W-64W. Two lamp models have 2 ballasts for separate switching or system redundancy. Normally shipped as components for fast delivery. Tank assemblies include quad-pin lamp.
Country of Origin
United States
Dimensions
14.06 in x 6 in x 14.06 in
Height
14.06 in
Lumens
6400
Voltage Rating
120-277 VAC
Finish Type
Powder Epoxy Paint
Lamp Type
Quad Pin
Type
Aluminum Compact Fluorescent Fixture
Class Code
D20
Freight Class Code
06316009
Image Actual Or Representative
A
MSDS Flag
No
Returnable Indicator
Yes
Gross Weight with Packaging
13.5
Lumens Per Watt
76.2
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Base Unit of Measure
EA
Master Pack Description
Each
Size14.06 in x 6 in x 14.06 in
ARRA CompliantContact Manufacturer
ColorTan
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length14.06 in
Optic TypeLuminaire Only
Width6 in
Frequency Rating50/60 Hz
Mounting TypeLuminaire Only
Wattage84 W
Description - InvoiceVQ1 HSG 2-42W CFL QUAD-PIN 120-277V
Harmonization Code9405499900
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD20D202
Lumen Range5,001-10,000 lm
Light SourceCompact Fluorescent
SeriesVQ1F Series
Carton - SCC-14 Next Lower Level Sub Pack00783936076799

Certifications

EU RoHS Indicator
Contact Manufacturer
