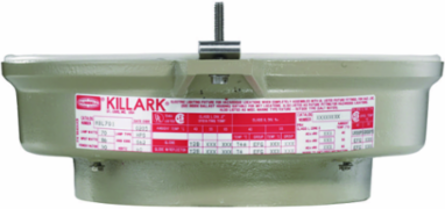

Killark VQ2F4230 Aluminum Compact Fluorescent Light Fixture 42W 120-277V 7-3/4 Inch Optic
- MPN: VQ2F4230
- UPC: 783936076843
- PPN: HBL-VQ2F4230
- UNSPSC: 39111612
CAD
$2247.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VQ2F Series - Aluminum 42 Watt Compact Fluorescent Light Fixture (Lamp Included) - 120-277V At 50/60 Hz - Optic Thread Size 7-3/4 Inch
Features
- World Voltage Ballast 120 through 277 VAC 50/60Hz
- Six mounting splice box types: Pendant, Ceiling, Wall bracket, Cone Top, 25° Angle Stanchion, Straight Stanchion – in a variety of entry sizes, including M20 for the VMX ceiling style.
- Elevated ambients to 55°C 13W – 64W
- Two lamp models have 2 ballasts for separate switching or system redundancy
- Normally shipped as components for fast delivery, or may be ordered factory assembled.
- Options for Fuses and Quick Disconnect
- Tank assemblies include quad-pin lamp
- World Voltage ballast 120-277 VAC 50/60 Hz. Elevated ambients to 55°C 13W-64W. Normally shipped as components for fast delivery. Tank assemblies include quad-pin lamp.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 14.06 in
- Optic Type
- Luminaire Only
- Fixture Finish
- Powder Epoxy Paint
- Lamp Type
- Quad Pin
- Special Features
- World Voltage ballast 120-277 VAC 50/60 Hz. Elevated ambients to 55°C 13W-64W. Normally shipped as components for fast delivery. Tank assemblies include quad-pin lamp.
- Voltage Rating
- 120-277 VAC
- Finish Type
- Powder Epoxy Paint
- Wattage
- 42 W
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 12.5
- Lumens Per Watt
- 76.2
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936076843
- NAICS Code
- 3351291100
Dimensions14.06 in x 6 in x 14.06 in
Height14.06 in
Lumens3200
ColorTan
Frequency Rating50/60 Hz
Size14.06 in x 6 in x 14.06 in
TypeAluminum Compact Fluorescent Fixture
Width6 in
Mounting TypeLuminaire Only
ARRA CompliantContact Manufacturer
Description - InvoiceVQ2 HSG 42W CFL QUAD-PIN 120-277V
Harmonization Code9405490000
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD20D202
Lumen Range2,001-5,000 lm
Light SourceCompact Fluorescent
SeriesVQ2F Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
