Thomas & Betts K655BVS VS HOUSING
- MPN: K655BVS
- UPC: 783786639472
- PPN: T-B-K655BVS
- UNSPSC: 26121630
CAD
$1374.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

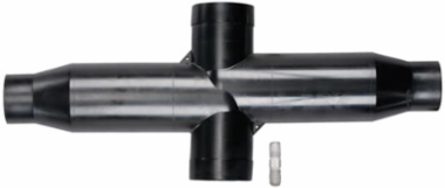

15/25kV 600 Series Deadbreak Vault Stretcher (Housing Only with Stud)
Specifications
Additional Information
- Application
- The K655BVS vault stretcher housing is a component of the Vault Stretcher product line.
- Effective Date
- 19980115
- Product Name
- electrical connector,>1000v"
- Size
- 2.50 inch (63.5 mm) Diameter. 21.75 inch (552.50 mm) Length. Centerline to Edge 10.88 inch (276.2 mm)
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
MaterialEPDM Rubber
Product TypeVault Stretcher Housing
Special FunctionsFully rated 15/25kV, 600 Amp Deadbreak Vault Stretcher. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators.
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
