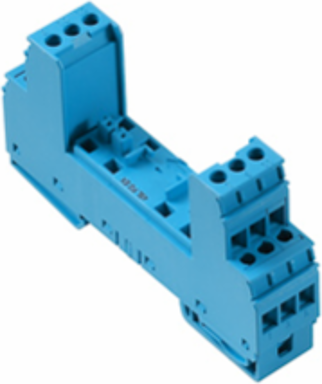

Weidmuller 8951810000 VSPC BASE 1CL FG EX
- MPN: 8951810000
- PPN: WDM-8951810000
CAD
$81.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surge protection, Flange-mounted housing, 450 mA, IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
Documentation & Downloads
Specifications
Further Details Of Approvals
- GOST certificate
- GOST-Zertifikat
Protection Ex - Data
- ATEX - dust labelling
- II 1 D Ex ia IIIC T135 °C …T85 °C Da
- Certificate No. (ATEX)
- KEMA10ATEX0148X
- IECEx - gas labelling
- II 1 G Ex ia IIC T4… T6 Ga
ATEX - gas labellingII 1 G Ex ia IIC T4… T6 Ga
IECEx - dust labellingII 1 D Ex ia IIIC T135 °C …T85 °C Da
Internal inductance, max. L0 µH
General Data
- Colour
- Light Blue
- Optical function display
- No
- Rail
- TS 35, TS 35 x 7.5
- UL 94 flammability rating
- V-0
DesignTerminal, miscellaneous
Protection degreeIP20
SegmentMeasurement - Monitoring - Setting
VersionFlange-mounted housing
Approvals
- Approvals
- CE, CSAEX, EAC, IECEXDEK, KEMAATEX
ROHSConform
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
Surge voltage categoryIII
Rated Data Iec / En
- Dielectric strength at FG against PE
- ≥ 500 V
- Rated current I
- 450 mA
- Standards
- IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
Leakage current at U0 µA
Signalling contactNo
Voltage typeAC/DC
Dimensions And Weights
- Width
- 17.8 mm
- Height
- 90 mm
- Depth
- 69 mm
- Net weight
- 71 g
Width (inches)0.701 inch
Height (inches)3.543 inch
Depth (inches)2.717 inch
Csa Protection Data
- Gas group C
- IIB
- Gas groups A, B
- IIC
- Internal capacity, max. C
- 0 nF
Gas group DIIA
Input current, max. I250 mA
Internal inductance, max. L0 µH
Connection Data
- Type of connection
- Screw connection
- Tightening torque, min.
- 0.5 Nm
- Clamping range, min.
- 0.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 2.5 mm²
Stripping length, rated connection7 mm
Tightening torque, max.0.8 Nm
Clamping range, max.4 mm²
Wire cross-section, solid, max.4 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.5 mm²
Connection cross-section, stranded, min.0.5 mm²
Blade size0.6 x 3.5 mm
Rated Data Ul
- UL certificate
- UL 497b Certificate
Tender Specification Sheets
- Long specification
- Base element for a single floating-ground powered paired cable. With the installation of the base element a contact is established between mounting rail and the integrated sparkover gap. Through this sparkover gap, a high impedance connection between the ground of the protective switch in the protective plug and the earth potential is made. Mechanical coding of the base element to the protected plug according to switching type and rated voltage. Suitable for ATEX applications. The base unit is coded itself by the first insertion of a protected plug. Mechanical coding of the base element to the protected plug according to switching type and rated voltage. The base unit is coded itself by the first insertion of a protected plug. Possible to mark all terminals
Short specificationBase element to receive a protected plug for one floating-ground powered paired cable, integrated sparkover gap for high impedance connection between the ground of the plug's protective circuit and the earth potential. Suitable for ATEX applications.
Classifications
- ETIM 6.0
- EC000472
- eClass 9.0
- 27-13-08-03
- eClass 10.0
- 27-13-08-03
ETIM 7.0EC000472
eClass 9.127-13-08-07
UNSPSC30-21-19-21
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 5...96 %
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.70 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...70 °C
Ratings Iecex/Atex/Cul
- ATEX certificate
- ATEX Certificate
- Certificate No. (ATEX)
- KEMA10ATEX0148X
IEC Ex certificateIECEX Zertifikat
cUL certificatecUL Certificate
