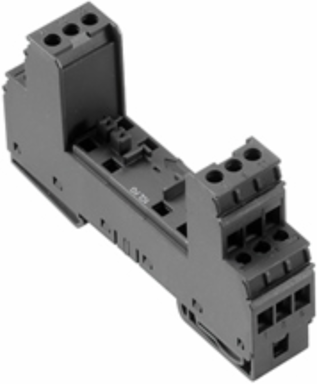

Weidmuller 8924290000 VSPC BASE 1CL FG
- MPN: 8924290000
- PPN: WDM-8924290000
CAD
$56.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

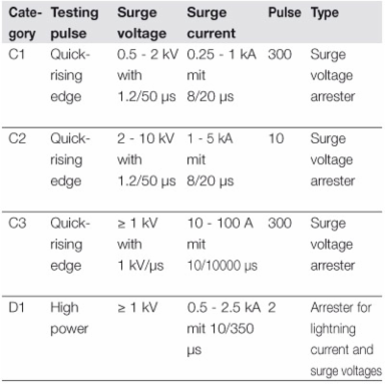

Surge protection, Flange-mounted housing, 450 mA, IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
Documentation & Downloads
Specifications
Further Details Of Approvals
- GOST certificate
- GOST-Zertifikat
General Data
- Colour
- black
- Optical function display
- No
- Rail
- TS 35, TS 35 x 7.5
- UL 94 flammability rating
- V-0
DesignTerminal, miscellaneous
Protection degreeIP20
SegmentMeasurement - Monitoring - Setting
VersionFlange-mounted housing
Approvals
- Approvals
- CE, CSAEX, EAC, UL
- UL File Number Search
- E311081
ROHSConform
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
Surge voltage categoryIII
Rated Data Iec / En
- Dielectric strength at FG against PE
- ≥ 500 V
- Rated current I
- 450 mA
- Standards
- IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
Leakage current at U0 µA
Signalling contactNo
Voltage typeAC/DC
Dimensions And Weights
- Width
- 17.8 mm
- Height
- 90 mm
- Depth
- 69 mm
- Net weight
- 66 g
Width (inches)0.701 inch
Height (inches)3.543 inch
Depth (inches)2.717 inch
Csa Protection Data
- Gas group C
- IIB
- Gas groups A, B
- IIC
- Internal inductance, max. L
- 0 µH
Gas group DIIA
Input current, max. I450 mA
Connection Data
- Type of connection
- Screw connection
- Tightening torque, min.
- 0.5 Nm
- Clamping range, min.
- 0.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 2.5 mm²
Stripping length, rated connection7 mm
Tightening torque, max.0.8 Nm
Clamping range, max.4 mm²
Wire cross-section, solid, max.4 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.5 mm²
Connection cross-section, stranded, min.0.5 mm²
Blade size0.6 x 3.5 mm
Rated Data Ul
- Certificate No. (UL)
- E311081
UL certificateUL 497b Certificate
Tender Specification Sheets
- Long specification
- Base element for a single floating-ground powered paired cable. When the base unit is fitted, a simultaneous sparkover gap to high impedance earth is made between the mounting rail (earth) and the reference potential (ground) of the protective switch in the plug. Mechanical coding of the base element to the protected plug according to switching type and rated voltage. The base unit is coded itself by the first insertion of a protected plug. Possible to mark all terminals
Short specificationBase element to receive a protected plug for one floating-ground powered paired cable with indirect earthing.
Classifications
- ETIM 6.0
- EC000472
- eClass 9.0
- 27-13-08-03
- eClass 10.0
- 27-13-08-03
ETIM 7.0EC000472
eClass 9.127-13-08-07
UNSPSC30-21-19-21
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 5...96 %
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.70 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...70 °C
Ratings Iecex/Atex/Cul
- cUL certificate
- cUL Certificate
