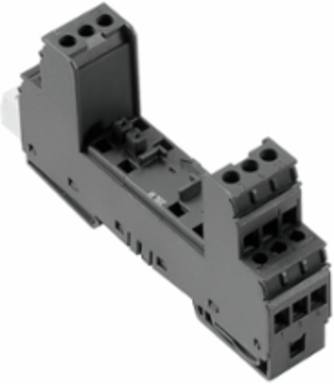

Weidmuller 8951770000 VSPC BASE 2SL R
- MPN: 8951770000
- PPN: WDM-8951770000
CAD
$107.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surge protection, Flange-mounted housing, 300 mA, IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
Documentation & Downloads
Specifications
Further Details Of Approvals
- GOST certificate
- GOST-Zertifikat
General Data
- Colour
- black
- Optical function display
- No
- Rail
- TS 35, TS 35 x 7.5
- UL 94 flammability rating
- V-0
DesignTerminal, miscellaneous
Protection degreeIP20
SegmentMeasurement - Monitoring - Setting
VersionFlange-mounted housing
Approvals
- Approvals
- CE, CSAEX, EAC, UL
- UL File Number Search
- E311081
ROHSConform
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
Surge voltage categoryIII
Rated Data Iec / En
- Rated current I
- 300 mA
- Standards
- IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
Signalling contactUN 250 V AC 0.1 A 1CO at VSPC R with VSPC control unit
Voltage typeAC/DC
Dimensions And Weights
- Width
- 17.8 mm
- Height
- 98 mm
- Depth
- 69 mm
- Net weight
- 70 g
Width (inches)0.701 inch
Height (inches)3.858 inch
Depth (inches)2.717 inch
Csa Protection Data
- Gas group C
- IIB
- Gas groups A, B
- IIC
- Internal inductance, max. L
- 0 µH
Gas group DIIA
Input current, max. I300 mA
Connection Data
- Type of connection
- Screw connection
- Tightening torque, min.
- 0.5 Nm
- Clamping range, min.
- 0.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 2.5 mm²
Stripping length, rated connection7 mm
Tightening torque, max.0.8 Nm
Clamping range, max.4 mm²
Wire cross-section, solid, max.4 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.5 mm²
Connection cross-section, stranded, min.0.5 mm²
Blade size0.6 x 3.5 mm
Rated Data Ul
- Certificate No. (UL)
- E311081
UL certificateUL 497b Certificate
Tender Specification Sheets
- Long specification
- Base element can take a protected plug for up to two floating-ground powered paired cables. When the base unit is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the plug. With remote monitoring function. Mechanical coding of the base element to the protected plug according to switching type and rated voltage. The base unit is coded itself by the first insertion of a protected plug. Possible to mark all terminals
Short specificationBase element receives a protected plug for two floating-ground powered paired cables with direct earthing. With optional remote monitoring.
Classifications
- ETIM 6.0
- EC000472
- eClass 9.0
- 27-13-08-03
- eClass 10.0
- 27-13-08-03
ETIM 7.0EC000472
eClass 9.127-13-08-07
UNSPSC30-21-19-21
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Connection Data, Remote Alert
- Connection type
- Screw connection
- Stripping length
- 6 mm
- Cross-section for connected wire, solid core, max.
- 1.5 mm²
Max. torque0.2 Nm
Cross-section for connected wire, solid core, min.0.5 mm²
Temperatures
- Humidity
- 5...96 %
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.70 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...70 °C
Ratings Iecex/Atex/Cul
- cUL certificate
- cUL Certificate
