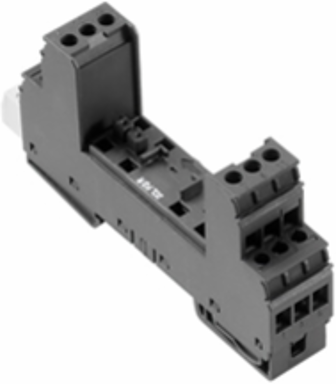

Weidmuller 8951720000 VSPC BASE 2CL FG R

  • MPN: 8951720000
  • PPN: WDM-8951720000

CAD

$98.04

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Surge protection, Flange-mounted housing, 450 mA, IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006

Documentation & Downloads

Specifications

Further Details Of Approvals

GOST certificate
GOST-Zertifikat

General Data

Colour
black
Optical function display
No
Rail
TS 35, TS 35 x 7.5
UL 94 flammability rating
V-0
DesignTerminal, miscellaneous
Protection degreeIP20
SegmentMeasurement - Monitoring - Setting
VersionFlange-mounted housing

Approvals

Approvals
CE, CSAEX, EAC, UL
UL File Number Search
E311081
ROHSConform

Insulation Coordination Acc. To En 50178

Pollution severity
2
Surge voltage categoryIII

Rated Data Iec / En

Dielectric strength at FG against PE
≥ 500 V
Rated current I
450 mA
Standards
IEC 61643-21, IEC 62305, DIN EN 60079-0.2009, DIN EN 60079-11:2007, DIN EN 60079-26:2007, DIN EN 61241-11:2006
Leakage current at U0 µA
Signalling contactUN 250 V AC 0.1 A 1CO at VSPC R with VSPC control unit
Voltage typeAC/DC

Dimensions And Weights

Width
17.8 mm
Height
98 mm
Depth
69 mm
Net weight
65.74 g
Width (inches)0.701 inch
Height (inches)3.858 inch
Depth (inches)2.717 inch

Csa Protection Data

Gas group C
IIB
Gas groups A, B
IIC
Internal inductance, max. L
0 µH
Gas group DIIA
Input current, max. I450 mA

Connection Data

Type of connection
Screw connection
Tightening torque, min.
0.5 Nm
Clamping range, min.
0.5 mm²
Wire cross-section, solid, min.
0.5 mm²
Wire connection cross section, finely stranded, max.
2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
2.5 mm²
Connection cross-section, stranded, max.
2.5 mm²
Stripping length, rated connection7 mm
Tightening torque, max.0.8 Nm
Clamping range, max.4 mm²
Wire cross-section, solid, max.4 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.5 mm²
Connection cross-section, stranded, min.0.5 mm²
Blade size0.6 x 3.5 mm

Rated Data Ul

Certificate No. (UL)
E311081
UL certificateUL 497b Certificate

Tender Specification Sheets

Long specification
Base element for two floating-ground powered paired cables. When the base unit is fitted, a simultaneous sparkover gap to high impedance earth is made between the mounting rail (earth) and the reference potential (ground) of the protective switch in the plug. With optional remote monitoring. Mechanical coding of the base element to the protected plug according to switching type and rated voltage. The base unit is coded itself by the first insertion of a protected plug. Possible to mark all terminals
Short specificationBase element receives a protected plug for two floating-ground powered paired cables with indirect earthing. With optional remote monitoring

Classifications

ETIM 6.0
EC000472
eClass 9.0
27-13-08-03
eClass 10.0
27-13-08-03
ETIM 7.0EC000472
eClass 9.127-13-08-07
UNSPSC30-21-19-21

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

Connection Data, Remote Alert

Connection type
Screw connection
Stripping length
6 mm
Cross-section for connected wire, solid core, max.
1.5 mm²
Max. torque0.2 Nm
Cross-section for connected wire, solid core, min.0.5 mm²

Temperatures

Humidity
5...96 %
Operating temperature, min.
-40 °C
Storage temperature, min.
-40 °C
Storage temperature
-40 °C...80 °C
Operating temperature, max.70 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...70 °C

Ratings Iecex/Atex/Cul

cUL certificate
cUL Certificate
