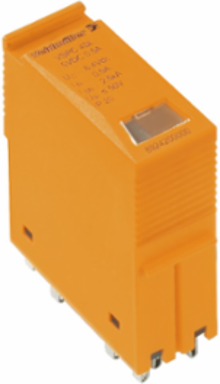

Weidmuller 8924680000 VSPC GROUND
- MPN: 8924680000
- PPN: WDM-8924680000
CAD
$114.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adapter, 500 mA
Documentation & Downloads
Specifications
General Data
| Colour | orange |
|---|---|
| Optical function display | No |
| Segment | Measurement - Monitoring - Setting |
| Version | without warning function / function indicator |
| Design | Terminal, miscellaneous |
|---|---|
| Protection degree | IP20 |
| UL 94 flammability rating | V-0 |
Approvals
| Approvals | CSAEX, EAC, UL |
|---|---|
| UL File Number Search | E311081 |
| ROHS | Conform |
|---|
Insulation Coordination Acc. To En 50178
| Pollution severity | 2 |
|---|
| Surge voltage category | III |
|---|
Rated Data Iec / En
| Fuse | 0.5 A |
|---|---|
| Max. continuous voltage, Uc (DC) | 250 V |
| Rated current I | 500 mA |
| Max. continuous voltage, Uc (AC) | 255 V |
|---|---|
| Number of poles | 1 |
| Volume resistance | < 0.2 Ω |
Dimensions And Weights
| Width | 17.8 mm |
|---|---|
| Height | 90 mm |
| Depth | 69 mm |
| Net weight | 18.2 g |
| Width (inches) | 0.701 inch |
|---|---|
| Height (inches) | 3.543 inch |
| Depth (inches) | 2.717 inch |
Csa Protection Data
| Gas group C | IIB |
|---|---|
| Gas groups A, B | IIC |
| Internal capacity, max. C | 0 nF |
| Gas group D | IIA |
|---|---|
| Input voltage, max. U | 360 V |
| Internal inductance, max. L | 0 µH |
Rated Data Ul
| Certificate No. (UL) | E311081 |
|---|
| UL certificate | UL 497b Certificate |
|---|
Tender Specification Sheets
| Long specification | Earthing plugs for all VSPC BASEs. All connected cables are earthed when plugged in. |
|---|
| Short specification | Earthing plugs for all VSPC BASEs. |
|---|
Classifications
| ETIM 6.0 | EC000943 |
|---|---|
| eClass 9.0 | 27-13-08-07 |
| eClass 10.0 | 27-13-08-07 |
| ETIM 7.0 | EC000943 |
|---|---|
| eClass 9.1 | 27-13-08-07 |
| UNSPSC | 30-21-19-21 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Humidity | 5...96 % |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...70 °C |
Ratings Iecex/Atex/Cul
| cUL certificate | cUL Certificate |
|---|
