Weidmuller 1111910000 PowerTerminal GK
- MPN: 1111910000
- PPN: WDM-1111910000
CAD
$131.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

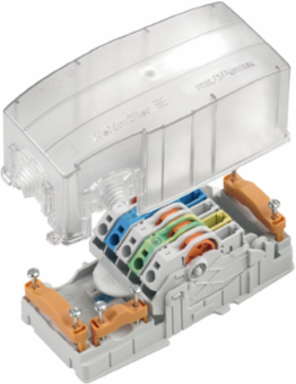

FieldPower® Box, IP30, Polycarbonate, With transparent hood, AC Box
Documentation & Downloads
Specifications
General Data
| Can be coded | Yes, Coded on PE |
|---|---|
| Material colour | Transparent |
| Silicone | No |
| Halogen | No |
| Connection 2 | PTS4 plug, PTDS4 plug |
|---|---|
| Protection degree | IP30 |
| Insulating material | Polycarbonate |
| UL 94 flammability rating | V-0 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 157 mm |
|---|---|
| Width | 75 mm |
| Height | 60 mm |
| Net weight | 305 g |
| Length (inches) | 6.181 inch |
|---|---|
| Width (inches) | 2.953 inch |
| Height (inches) | 2.362 inch |
Rated Data Acc. To Iec
| Rated cross-section | 6 mm² |
|---|---|
| Rated impulse withstand voltage | 8 kV |
| Standards | IEC 60947-7-1 |
| Rated current | 41 A |
|---|---|
| Rated voltage | 800 V |
General Information #96 Connectors
| Can be coded | Yes, Coded on PE |
|---|
| UL 94 flammability rating | V-0 |
|---|
Idc Connection Clamping Capacity, Power Cable
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Connection cross-section, finely stranded, min. | 2.5 mm² |
| Connection cross-section, stranded, min. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 2.5 mm² |
| Wire cross-section, solid, min. | 1.5 mm² |
| Connection cross-section, finely stranded, max. | 6 mm² |
|---|---|
| Connection cross-section, stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire cross-section, solid, max. | 6 mm² |
Classifications
| ETIM 6.0 | EC000214 |
|---|---|
| eClass 9.0 | 27-14-24-09 |
| eClass 10.0 | 27-14-24-09 |
| ETIM 7.0 | EC000214 |
|---|---|
| eClass 9.1 | 27-14-24-09 |
Dimensions Of Box
| Height | 60 mm |
|---|---|
| Width | 75 mm |
| Length | 157 mm |
|---|
Clamping Capacity, Push-In Connection, Distribution
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Cross-section for connected wire PUSH IN connection, solid, min. | 0.5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, max. | 6 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, max. | 6 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, max. | 6 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, max. | 6 mm² |
| Cross-section for connected wire, flexible, PUSH IN connection, max. | 10 mm² |
| Finely-stranded flexible, max. PUSH IN connection | 6 mm² |
| Stripping length, PUSH IN connection | 14 mm |
| Wire connection cross section, stranded, PUSH IN connection, min. | 0.5 mm² |
| Blade size, PUSH IN connection | 0.6 x 3.5 mm |
|---|---|
| Cross-section for connected wire, PUSH IN connection, solid, max. | 6 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, min. | 0.5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, min. | 0.5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, min. | 0.5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, min. | 0.5 mm² |
| Cross-section for connected wire, flexible, PUSH IN connection, min. | 0.5 mm² |
| Finely-stranded flexible, min. PUSH IN connection | 0.5 mm² |
| Wire connection cross section, stranded, PUSH IN connection, max. | 6 mm² |
Temperatures
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...55 °C |
| Temperature range, installation, min. | 10 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Temperature range, installation, max. | 40 °C |

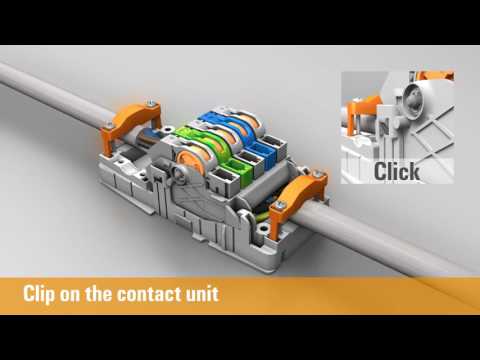

Loading video…
