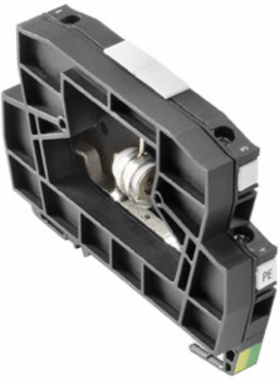

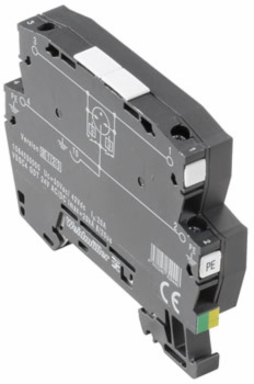

Weidmuller 1064030000 VSSC4 GDT 24VAC/DC 20kA
- MPN: 1064030000
- PPN: WDM-1064030000
CAD
$77.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surge protection for instrumentation and control, 24 V, 34 V, 20 A, IEC 61643-21
Documentation & Downloads
Specifications
Further Details Of Approvals
| GOST certificate | GOST-Zertifikat |
|---|
General Data
| Colour | black |
|---|---|
| Isolating function | No |
| Protection degree | IP20 |
| Segment | Measurement - Monitoring - Setting |
| Version | Surge protection for measurement and control |
| Design | Terminal |
|---|---|
| Optical function display | No |
| Rail | TS 35 |
| UL 94 flammability rating | V-0 |
Probability Of Failure
| λges | 10 |
|---|---|
| PFH in 1*10 | 0 |
| SIL PAPER | SIL Paper |
| MTTF | 11,416 years |
|---|---|
| SFF | 100 % |
| SIL in compliance with IEC 61508 | 3 |
Approvals
| Approvals | CE, CSAEX, EAC, FUSAFETY |
|---|
| ROHS | Conform |
|---|
Insulation Coordination Acc. To En 50178
| Pollution severity | 2 |
|---|
| Surge voltage category | III |
|---|
Rated Data Iec / En
| Capacitance | 4.96 pF |
|---|---|
| Discharge current, max. (8/20 µs) | 20 kA |
| Max. continuous voltage, Uc (AC) | 30 V |
| Number of poles | 1 |
| Protection level U | < 1000 V |
| Rated voltage (AC) | 24 V |
| Requirements category acc. to IEC 61643-21 | C2, C3, D1 |
| Surge current-carrying capacity C2 | 5 kA 8/20 μs |
| Surge current-carrying capacity D1 | 2.5 kA 10/350 μs |
| Volume resistance | < 0.1 Ω |
| Discharge current I | 5 kA |
|---|---|
| Lightning test current I | 2.5 kA |
| Max. continuous voltage, Uc (DC) | 42 V |
| Overload - failure mode | Modus 2 |
| Rated current I | 20 A |
| Rated voltage (DC) | 34 V |
| Standards | IEC 61643-21 |
| Surge current-carrying capacity C3 | 100 A 10/1000 μs |
| Voltage type | AC/DC |
Dimensions And Weights
| Width | 6.2 mm |
|---|---|
| Height | 76 mm |
| Depth | 58.5 mm |
| Net weight | 37.8 g |
| Width (inches) | 0.244 inch |
|---|---|
| Height (inches) | 2.992 inch |
| Depth (inches) | 2.303 inch |
Csa Protection Data
| Gas group C | IIB |
|---|---|
| Gas groups A, B | IIC |
| Input voltage, max. U | 42 V |
| Internal inductance, max. L | 0 µH |
| Gas group D | IIA |
|---|---|
| Input current, max. I | 20 A |
| Internal capacity, max. C | 0 nF |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.8 Nm |
| Clamping range, max. | 4 mm² |
| Wire cross-section, solid, max. | 6 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 4 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Tightening torque, min. | 0.5 Nm |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Wire cross-section, solid, min. | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.5 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
Rated Data Ul
| UL certificate | UL Zertifikat |
|---|
Tender Specification Sheets

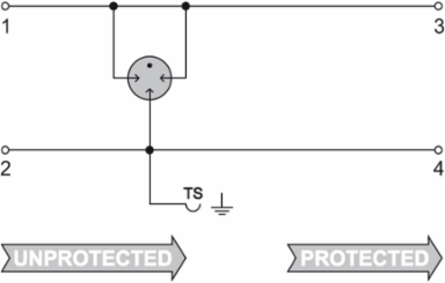

| Long specification | Feed-through terminal, 12.4mm wide with gas-filled surge voltage arrester between the signal line connection and the mounting rail potential, TS 35 contact base.A signal with max. 32A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked. |
|---|
| Short specification | Feed-through terminal with gas-filled surge voltage arrester between the signal line connection and the mounting rail potential, TS 35 contact base. Version: 24V AC |
|---|
Classifications
| ETIM 6.0 | EC000943 |
|---|---|
| eClass 9.0 | 27-13-08-07 |
| eClass 10.0 | 27-13-08-07 |
| ETIM 7.0 | EC000943 |
|---|---|
| eClass 9.1 | 27-13-08-07 |
| UNSPSC | 30-21-18-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Humidity | 5...96 % |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...70 °C |
Ratings Iecex/Atex/Cul
| cUL certificate | cUL Certificate |
|---|
