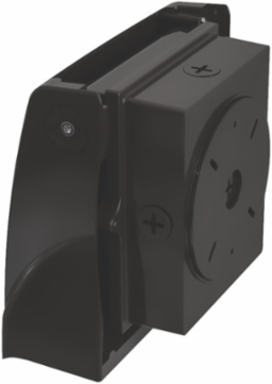

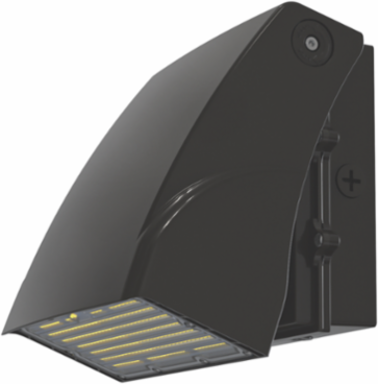

RAB 081292 Wall Light LED AWL1S-LED30A15 30A15W 120-347V Variable Temp Sparkling Silver Finish Dimmable with Photocell
- MPN: 081292
- UPC: 061184812926
- PPN: RAB-081292
CAD
$214.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The AWLS-LED select series wall light is a colour selectable fixture with an adjustable head to direct light wherever needed. Ideal for use in perimeter lighting, condos, schools, and town houses
Features
- Colour Selectable Fixture – Installer can choose between 3000K/4000K/5000K through a switch inside the housing
- AWL1S-LED30A15 is a lumen adjustable unit with 3 settings at 30W, 20W, and 15W
- Adjustable head to direct light wherever needed.
- Hinge Assembly allows Installer to use both hands for wiring.
- Level bubble for quick alignment
- Photocell is included.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 12.7 Inches
- Lumens
- 3599
- Efficacy
- 120
- THD
- 0.15
- CRI
- >70
- LED life
- 100,000 Hours
- Materials
- Die Cast Aluminum
- Voltage
- 120-347V
- Dimmable
- Yes
Width12.8 Inches
Depth9.3 Inches
Watts30
Operating Temperature-40C to +50C
PF>0.9
Surge Protection2.5kV
LensClear Polycarbonate
CCTVK
FinishSparkling Silver
Lighting ControlsPhotocell
