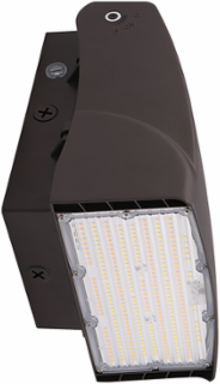

RAB 081430 Wall Light LED AWL3S-LED120A100 120A100W 120-347V Variable Temp Matte Black Finish Dimmable with Photocell
- MPN: 081430
- UPC: 061184814302
- PPN: RAB-081430
CAD
$339.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The AWLS-LED select series wall light is a colour selectable and lumen adjustable fixture with an adjustable head to direct light wherever needed. Ideal for lighting up perimeters and entrances of condos, schools, townhouses, and commercial properties
Features
- Colour Selectable Fixture – Installer can choose between 3000K/4000K/5000K through a switch inside the housing
- AWL3S-LED120A100 is a lumen adjustable unit with 3 settings at 120W, 110W, and 100W
- Adjustable head to direct light wherever needed.

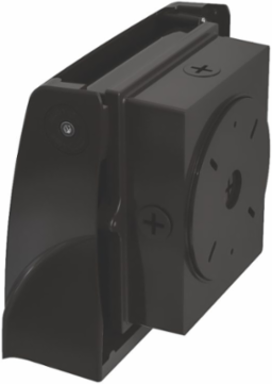

- Hinge Assembly allows Installer to use both hands for wiring.
- Level bubble for quick alignment
- Photocell is included.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 12.7 Inches
- Lumens
- 15614
- Efficacy
- 127.4
- THD
- 0.15
- CRI
- 73
- LED life
- 100,000 Hours
- Materials
- Die Cast Aluminum
- Voltage
- 120-347V
- Dimmable
- Yes
Width12.8 Inches
Depth9.3 Inches
Watts122.5
Operating Temperature-40C to +50C
PF>0.9
Surge Protection4kV
LensClear Polycarbonate
CCTVK
FinishMatte Black
Lighting ControlsPhotocell
