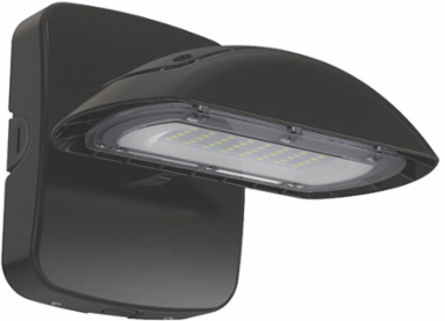

RAB 081253 Wall Light LED ORA2-LED30 30W 120-277V 4000K Bronze Finish Dimmable with Photocell and Wall Mount back box with Conduit
- MPN: 081253
- UPC: 061184812537
- PPN: RAB-081253
CAD
$205.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The ORA-LED series is a fully adjustable multi-purpose fixture that replaces traditional wall packs or floods.The ORA features a sleek elegant design with multiple mounting options.Arm the fixture down for dark sky compliance or aim out as needed for flood applications.
Features
- Ideal for townhouses, condos, perimeter lighting, and shopping malls.
- Fixture head may be aimed down or aimed out as needed.
- Wall light/flood light with wide beam optics.
- 0-10V dimming is standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 8.7 Inches
- Lumens
- 3698
- Efficacy
- 124
- THD
- 0.165
- CRI
- 70
- Lens
- Clear Polycarbonate
- CCT
- 4K
- Finish
- Bronze
- Lighting Controls
- Photocell
Width7.2 Inches
Depth8.2 Inches
Watts29.8
Operating Temperature-40C to +40C
PF0.9
LED life100,000 Hrs
MaterialsDie Cast Aluminum
Voltage120-277V
DimmableYes
MountingWall Mount back box with Conduit
