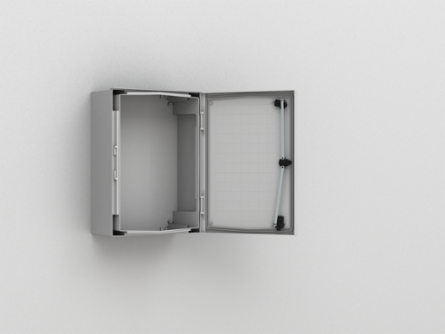

nVent Hoffman UCP320 Wall mounted, 315x215x170, Compact enclosure, 1-door, no MP, polyester, IP66
- MPN: UCP320
- UPC: 783510530020
- PPN: HOF-UCP320
CAD
$631.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Available in different sizes and is suited for outdoors. Component failure is eliminated as water is prevented. This Polyester Compact Wall Mounted Enclosures, UCP/UCPT, UCP320 item measures 315x215x170mm has a material of Polycarbonate color Light Gray, finish Smooth.
Features
- Material: Fibre-glass reinforced polyester. UCPT viewing area: polycarbonate.
- Body: Monoblock moulded 3 mm thick. Four holes for direct wall fixing. Without gland plate openings.
- Door: Door, with or without window and 180° opening. For UCP/UCPT750 and above, a door support is supplied for easier closing. Sealing is by an injected one piece polyurethane gasket.
- Lock: Double-bit 3 mm insert and 90° movement. UCP/UCPT540 and above have three locking points. Other locks are available as an accessory.
- Temperature resistance: -25 °C to 70 °C in continuous use (peak temperatures up to 130 °C).
- Characteristics: Self extinguishing and halogen free. Double insulated, according to EN61439-1. Rated insulation voltage Ui = 1000 V ac and 1500 V dc.
- Protection: IP 66, TYPE 4, 4X, 12, 13 for UCP except UPC430 IP65. IP54 TYPE 12 for UCPT. Impact resistance IK 08 (IK 07 for cabinets with transparent doors UCPT).
- Approvals: CE, GOST. CSA and cULus_UL Listed approvals apply to plain door enclosures only. For further approvals, please contact nVent HOFFMAN's sales department.
- Finish: RAL 7035, precoloured raw material.
- Delivery: Enclosure with door, fixing screws for the mounting plate and a self adhesive rain strip.
- Note: UCP320, UCP430 and UCP540 are delivered with the doors inside the packaging, unmounted.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 215
- Door Type
- Plain
- Material
- Polyester
- Finish
- Smooth
- Color Code
- RAL 7035
- Weight
- 6.2
Height (H)315
Depth (D)170
Latch Quantity1
Protection RatingIP66
ColorLight Gray
Body Thickness3
