Hubbell Wiring Device-Kellems

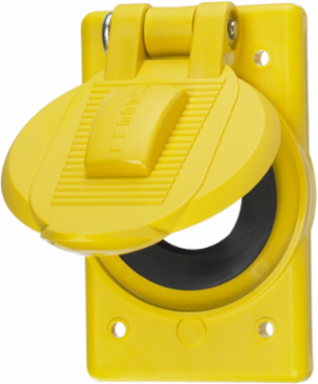

Hubbell Wiring Device-Kellems HBL74CM23WO Weatherproof Wallplate Cover, 1-Gang, 1.40" Opening, Yellow Polycarbonate

Weatherproof Wallplate Cover, 1-Gang, 1.40" Opening, Yellow Polycarbonate
  • MPN: HBL74CM23WO
  • UPC: 783585809403
  • PPN: HBL-HBL74CM23WO
  • UNSPSC: 39121304

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$144.75/ EA

Description

Twist-Lock® Devices, Weatherproof Covers, Accessories, Yellow polycarbonate for FS/FD box mounting, corrosion resistant

Features

  • IP44 SUITABILITY
  • Weatherproof in Open Position with Device Mated

Specifications

Specifications

Engineering Drawing 1 Display Text
HBL74CM23WO AutoCAD Drawing
General Literature Asset 2 Display Text
Food Processing Guide
Country of Origin
United States
Height
1.09 in
Length
4.56 in
Application
1.40" Opening
Number of Outlet
1-Device
Size
4.56 in x 2.84 in x 1.09 in
Standard
UL Listed
Weight
0.2 lb.
Display Size
1-Gang
Operating Temperature
-40°C to 85 °C
Class Code
A24
Freight Class Code
06168002
Image Actual Or Representative
A
Replaced Catalog Number
74CM23WO
Material - Mounting Hardware
Vertical FS/FD Mount- Mounting Screws
Material
Thermoplastic
Series
Accessory
BOX SIZE
6.300x14.300x9.700 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
783585809403
Case Weight
4.250 lb.
Lowest Level UOM
Each
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextHubbell Marine Full Line Catalog
Dimensions4.56 in x 2.84 in x 1.09 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ColorYellow
ShapeRectangle
Special FeaturesWeatherproof in Open Position with Device Mated
TypeCovers
Width2.84 in
Number Of Outlets1-Device
StyleFor receptacles with Face Diameter 1.36–1.39 in.
Description - InvoiceW/PROOF RCPT PLATE, POLYCARB , 1.40", YL
Harmonization Code3925909900
MSDS FlagNo
Sub Class CodeA24A290
ConstructionMolded
Number of Gang(s)1-Gang
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
