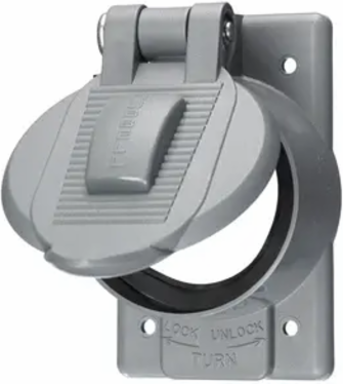

Hubbell Wiring Device-Kellems HBL7774WO Weatherproof Cover 1-Gang for 50A Twist-Lock, Thermoplastic

Weatherproof Cover 1-Gang for 50A Twist-Lock, Thermoplastic
Weatherproof Cover 1-Gang for 50A Twist-Lock, Thermoplastic
Weatherproof Cover 1-Gang for 50A Twist-Lock, Thermoplastic
  • MPN: HBL7774WO
  • UPC: 783585809526
  • PPN: HBL-HBL7774WO
  • UNSPSC: 39121304

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$199.35/ EA

Description

Wallplates and Boxes, Weatherproof Covers, 1-Gang, 1) 50A Twist-Lock® Opening, Standard Size, Thermoplastic

Features

  • For use with 50A Twist-Lock® Single Receptacles
  • Weatherproof in Open Position with Device Mated

Specifications

Specifications

Engineering Drawing 1 Display Text
HBL7774WO AutoCAD Drawing
General Literature Asset 2 Display Text
50 Amp Twist-Lock® Devices
Country of Origin
United States
Industry Standard(s)
UL Listed - Canadian and U.S.
Application
All 50A Twist-Lock®
Number of Outlet
1-Device
Special Features
Weatherproof in Open Position with Device Mated
Type
Covers
Dielectric Strength
Withstands 2,000V minimum
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Class Code
A24
Freight Class Code
06168002
Image Actual Or Representative
A
Replaced Catalog Number
7774WO
Material - Mounting Hardware
Vertical FS/FD Mount- Mounting Screws
Number of Gang(s)
1-Gang
BOX SIZE
5.000x20.200x10.100 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
783585809526
Case Weight
6.145 lb.
Lowest Level UOM
Each
Pallet Height
45.000 in
Pallet Weight
380.700 lb.
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
General Literature Asset 3 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Width3.300 in
Standards - RoHS Compliance StatusCM
ColorGray
ShapeRectangle
StandardUL Listed - Canadian and U.S.
Weight0.35 lb.
Number Of Outlets1-Device
StyleFor 50A Twist-Lock® Single Receptacle
Description - InvoiceLIFT COVER, POLYCARBONATE, FOR 50A TWIST
Harmonization Code3925909900
MSDS FlagNo
Sub Class CodeA24A290
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.900 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585809525
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
Yes
