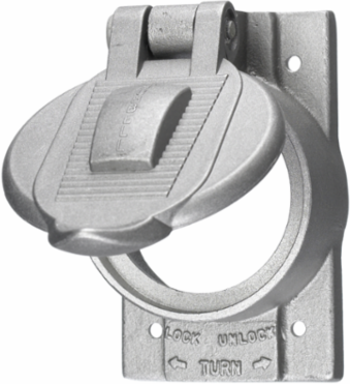

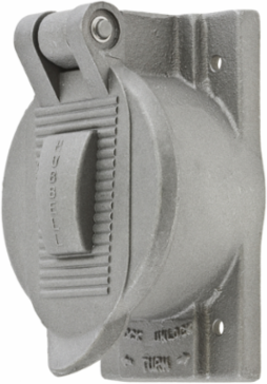

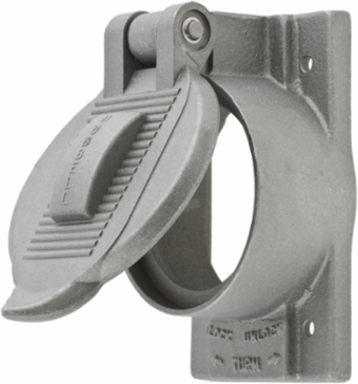

Hubbell Wiring Device-Kellems HBL7770 Weatherproof Wallplate Cover, 1-Gang, 50A Twist-Lock®, Cast Aluminum
- MPN: HBL7770
- UPC: 783585809519
- PPN: HBL-HBL7770
- UNSPSC: 39121304
CAD
$113.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wallplates and Boxes, Weatherproof Covers, 1-Gang, 1) 50A Twist-Lock® Opening, Standard Size, Cast Aluminum
Features
- For use with 50A Twist-Lock® Single Receptacles
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- 50 Amp Twist-Lock® Devices
- Country of Origin
- China
- Height
- 4.18 in
- Length
- 2.84 in
- Application
- All 50A Twist-Lock®
- Shape
- Rectangle
- Special Features
- Standard Product
- Type
- Covers
- Width
- 2.18 in
- Number Of Outlets
- 1-Device
- Style
- For 50A Twist-Lock® Single Receptacle
- Description - Invoice
- W/PROOF PLATE FOR 50A TL, ALU
- Harmonization Code
- 7616999999
- MSDS Flag
- No
- Sub Class Code
- A24A280
- Construction
- Cast
- Number of Gang(s)
- 1-Gang
- BOX SIZE
- 5.200x20.100x10.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585809519
- Case Weight
- 6.422 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.800 in
- Pallet Weight
- 635.850 lb.
- NAICS Code
- 3359326103
General Literature Asset 2 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Dimensions2.84 in x 2.18 in x 4.18 in
Industry Standard(s)UL Listed - Canadian and U.S.
Standards - RoHS Compliance StatusCM
Number of Outlet1-Device
Size2.84 in x 2.18 in x 4.18 in
StandardUL Listed - Canadian and U.S.
Weight0.75 lb.
Dielectric StrengthWithstands 2,000V minimum
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA24
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number7770
Material - Mounting HardwareVertical FS/FD Mount- Mounting Screws
MaterialAluminum, Cast
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.300 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585809518
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
