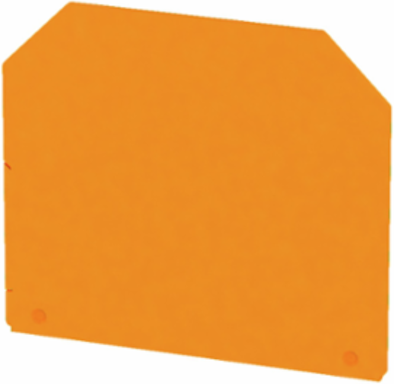

Weidmuller 1050160000 WAP 16+35 WTW 2.5-10 OR
- MPN: 1050160000
- PPN: WDM-1050160000
CAD
$1.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, End plate, Seperation plate
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 1.5 mm
- Height
- 56 mm
- Depth
- 49.5 mm
- Net weight
- 4.575 g
Width (inches)0.059 inch
Height (inches)2.205 inch
Depth (inches)1.949 inch
Dimensions
- TS 35 offset
- 81.5 mm
Additional Technical Data
- Installation advice
- Direct mounting
Snap-onNo
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourorange
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-33
- eClass 10.0
- 27-14-11-33
ETIM 7.0EC000886
eClass 9.127-14-11-33
UNSPSC30-21-18-01
System Specifications
- Version
- End plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
