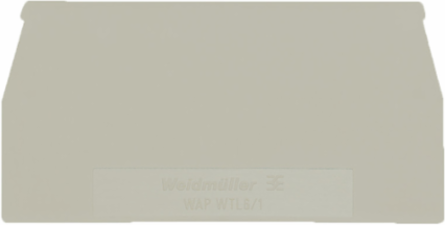

Weidmuller 1871500000 WAP WTL6/1 KGR
- MPN: 1871500000
- PPN: WDM-1871500000
CAD
$1.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, End plate
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 1.5 mm |
|---|---|
| Height | 65 mm |
| Depth | 34.5 mm |
| Net weight | 3.6 g |
| Width (inches) | 0.059 inch |
|---|---|
| Height (inches) | 2.559 inch |
| Depth (inches) | 1.358 inch |
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | Pebble grey |
|---|
Classifications
| ETIM 6.0 | EC000886 |
|---|---|
| eClass 9.1 | 27-14-11-33 |
| ETIM 7.0 | EC000886 |
|---|---|
| eClass 10.0 | 27-14-11-33 |
System Specifications
| Version | End plate |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
