Hubbell Wiring Device-Kellems

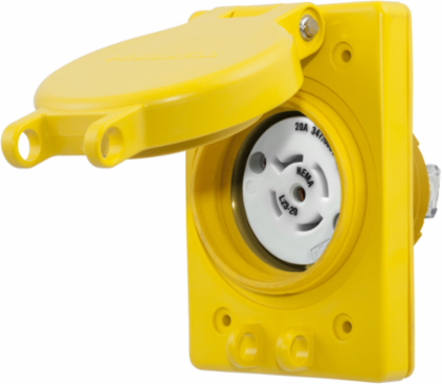

Hubbell Wiring Device-Kellems HBL67W83 Watertight Receptacle 20A 347/600V 4-Pole 3-Phase Yellow

Watertight Receptacle 20A 347/600V 4-Pole 3-Phase Yellow
  • MPN: HBL67W83
  • UPC: 783585433226
  • PPN: HBL-HBL67W83
  • UNSPSC: 39121406

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$220.18/ EA

Description

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 20A, 3 Phase WYE 347/600VAC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L23-20R, Yellow

Features

  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

Amperage
20 A
Phases
3
Number of Wires
5-Wire
Dielectric Voltage
3500 VAC
Temperature Rise
30°C max per UL498 at rated current
Wire Size
#18 AWG to #8 AWG
Seal Type
Thermoplastic Elastomer
Country of Origin
PR
Moisture Resistance
UL Listed 4, 4X, 12, 6, 6P
Voltage3-Phase Y 347/600 VAC
Number of Poles4-Pole
NEMA RatingL23-20R
Temperature Range-40°C to +60°C continuous
Size / Dimensions4.56 in x 3.10 in x 2.92 in
MaterialPBT, Thermoplastic Elastomer, White Nylon, Clear Polycarbonate, Nickel Plated Brass, Stainless Steel
ColorYellow
ComplianceUL Listed, CSA Certified, IP69K In Use
