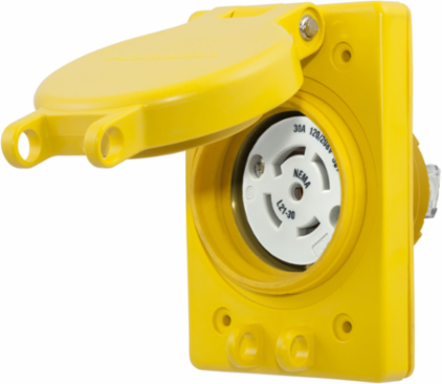

Hubbell Wiring Device-Kellems HBL69W81 Watertight Receptacle 30A 3-Phase 120/208V 4-Pole 5-Wire
Hubbell Wiring Device-Kellems HBL69W81 Watertight Receptacle 30A 3-Phase 120/208V 4-Pole 5-Wire
- MPN: HBL69W81
- UPC: 783585433318
- PPN: HBL-HBL69W81
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$232.05/ EA
Description
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase WYE 120/208V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L21-30R, Yellow
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 4.56 in x 3.10 in x 2.92 in
- Industry Standard(s)
- IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
- Performance
- Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous
- Color
- Yellow
- Number of Poles
- 4-Pole
- Size
- 4.56 in x 3.10 in x 2.92 in
- Type
- Receptacle
- Wire Size
- #18 AWG to #8 AWG
- Width
- 3.10 in
- General Literature Asset 1 Display Text
- Watertight Wiring Devices
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Number Of Poles
- 4-Pole
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A116
- BOX SIZE
- 4.995x11.995x9.125 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585433318
Current / Amperage Rating30 A
Height2.92 in
Length4.56 in
Amperage Rating30 A
NEMA RatingL21-30R
Number of Wires5-Wire
StandardIP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards
Voltage Rating3-Phase Y 120/208 VAC
Voltage Rating Description3-Phase Y 120/208 VAC
Engineering Drawing 1 Display TextHBL69W81 AutoCAD Drawing
General Literature Asset 2 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Nema RatingL21-30R
Number Of Wires5-Wire
Description - InvoiceWATERTIGHT RECEP, 30A 120/208V, L21-30
Harmonization Code8536694020
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.950 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
