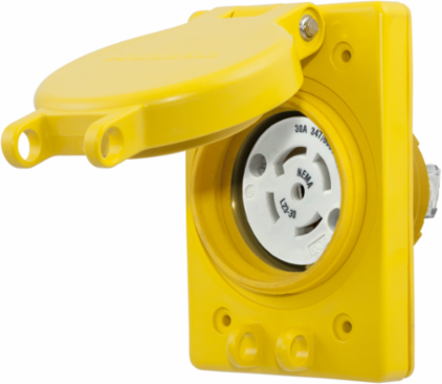

Hubbell Wiring Device-Kellems HBL69W83 Watertight Receptacle 30A 347/600V NEMA L23-30R, 4-Pole, 5-Wire
- MPN: HBL69W83
- UPC: 783585433332
- PPN: HBL-HBL69W83
- UNSPSC: 39121406
CAD
$239.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase WYE 347/600V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L23-30R, Yellow
Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Phase
- 3-Phase
- Wires
- 5-Wire
- Operating Temperature Range
- -40°C to +60°C continuous
- Temperature Rise
- 30°C max
- Device Type
- Receptacle
- Width
- 3.10 in
- Size
- 4.56 in x 3.10 in x 2.92 in
- Material
- PBT, Thermoplastic Elastomer, White Nylon, Clear Polycarbonate, Nickel Plated Brass, Stainless Steel
- UV Resistance
- UV stabilized
- IP Rating
- IP69K
- Moisture Resistance
- UL Listed 4, 4X, 12, 6, 6P
Voltage3-Phase Y 347/600 VAC
Poles4-Pole
NEMA RatingL23-30R
Dielectric Voltage3500V AC
Current InterruptingRated for current interruption per UL498
Length4.56 in
Height2.92 in
Wire Size#18 AWG to #8 AWG
Seal TypeThermoplastic Elastomer
ColorYellow
Industry Standard(s)IP69K In Use; Meets NEMA WD-1, WD-6, ANSI Standards
Country of OriginUS
