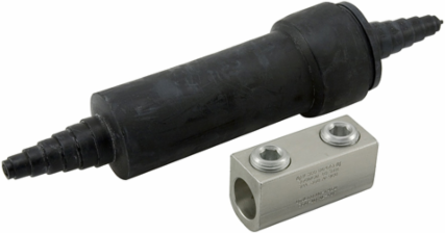

ILSCO SSK-350-Z Watertight Underground Splice Kit, Dual Rated, Conductor Range 350-6, Includes (1) SS-350-Z Cover and (1) SPA-350 Splice
- MPN: SSK-350-Z
- UPC: 783669874501
- PPN: ILC-SSK-350-Z
CAD
$85.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Watertight Underground Splice Kit, Dual Rated, Conductor Range 350-6, Includes (1) SS-350-Z Cover and (1) SPA-350 Splice
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.3 in | 58.42 mm
- Weight
- 0.450463774902224 lbs
Length14 in | 355.6 mm
Width6 in | 152.4 mm
Voltage
- Voltage Rating
- 600 V
Dimensions
- Height BX (IN)
- 3.75
- Length (mm)
- 355.6
- Width BX (IN)
- 6.5
Height (mm)58.42
Weight BX (LB)2.8052
Width (mm)152.4
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Additional Class Attributes
- Includes
- (1) SS-350-Z, (1) SPA-250
Number of Conductors2
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
InsulationEPDM
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 350 kcmil - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)350 kcmil - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-569-1
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
UPC Code78366987450
Color
- Color
- Silver, Black
Environment and Temperature
- Temperature Rating
- 90°C
Water tightYes
