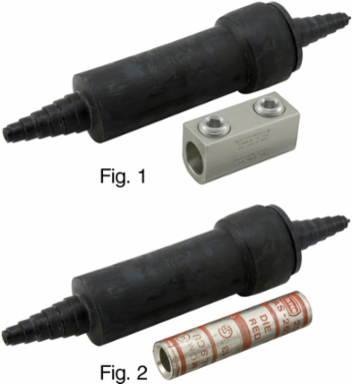

ILSCO SSKC-3/0-Z Watertight Underground Splice Kit, Dual Rated, Conductor Size 3/0, Includes (1) SS-350-Z Cover and (1) ASN-3/0 Sleeve

  • MPN: SSKC-3/0-Z
  • UPC: 783669857580
  • PPN: ILC-SSKC-3/0-Z

CAD

$69.39

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Watertight Underground Splice Kit, Dual Rated, Conductor Size 3/0, Includes (1) SS-350-Z Cover and (1) ASN-3/0 Sleeve

Documentation & Downloads

Specifications

Key Specifications

Height2.2 in | 55.88 mm
Weight0.260907310068434 lbs
Length14 in | 355.6 mm
Width4 in | 101.6 mm

Voltage

Voltage Rating600 V

Dimensions

Height BX (IN)3.75
Length (mm)355.6
Width BX (IN)6.375
Height (mm)55.88
Weight BX (LB)1.8964
Width (mm)101.6

Testing Standards

Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Additional Class Attributes

Includes(1) SS-350-Z, (1) ASN-3/0
Number of Conductors2

Material and Finish

Conductor MaterialCopper, Aluminum
MaterialAluminum
InsulationEPDM

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)3/0 Str
Expanded Conductor Range3/0 Str - 1 Str
Conductor Range CU Stranded (Primary, run, main, line)3/0 Str

Additional Technical Specifications

Conductor TypeStranded

General

Bag Quantity1
Direct BurialYes
NEMA CodeS-569-1
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
UPC Code78366985758

Color

ColorBlack, Silver

Environment and Temperature

Temperature Rating90°C
Water tightYes
Watertight Underground Splice Kit, Dual Rated, Conductor Size 3/0, Includes (1) SS-350-Z Cover and (1) ASN-3/0 Sleeve
