ILSCO

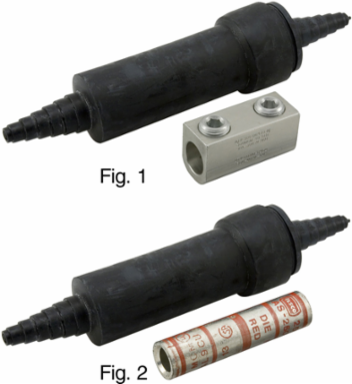

ILSCO SSKC-2-Z Watertight Underground Splice Kit, Dual Rated, Conductor Size 2, Includes (1) SS-350-Z Cover and (1) ASN-2 Sleeve

  • MPN: SSKC-2-Z
  • UPC: 783669857641
  • PPN: ILC-SSKC-2-Z

CAD

$66.93

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Watertight Underground Splice Kit, Dual Rated, Conductor Size 2, Includes (1) SS-350-Z Cover and (1) ASN-2 Sleeve

Documentation & Downloads

Specifications

Key Specifications

Height2.2 in | 55.88 mm
Weight0.244915056082759 lbs
Length14 in | 355.6 mm
Width4 in | 101.6 mm

Voltage

Voltage Rating600 V

Dimensions

Height BX (IN)3.75
Length (mm)355.6
Width BX (IN)6.375
Height (mm)55.88
Weight BX (LB)1.7803
Width (mm)101.6

Testing Standards

Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Additional Class Attributes

Includes(1) SS-350-Z, (1) ASN-2
Number of Conductors2

Material and Finish

Conductor MaterialCopper, Aluminum
MaterialAluminum
InsulationEPDM

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)2 Str
Expanded Conductor Range2 Str - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)2 Str

Additional Technical Specifications

Conductor TypeStranded

General

Bag Quantity1
Direct BurialYes
NEMA CodeS-569-1
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
UPC Code78366985764

Color

ColorBlack, Silver

Environment and Temperature

Temperature Rating90°C
Water tightYes
Watertight Underground Splice Kit, Dual Rated, Conductor Size 2, Includes (1) SS-350-Z Cover and (1) ASN-2 Sleeve
