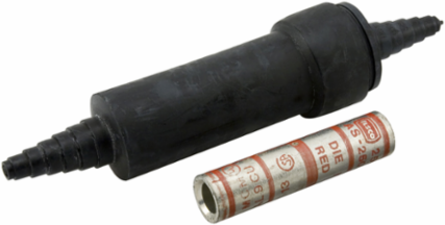

ILSCO SSKC-250-Z Watertight Underground Splice Kit, Dual Rated, Conductor Size 250, Includes (1) SS-350-Z Cover and (1) ASN-250 Sleeve
- MPN: SSKC-250-Z
- UPC: 783669857528
- PPN: ILC-SSKC-250-Z
CAD
$70.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Watertight Underground Splice Kit, Dual Rated, Conductor Size 250, Includes (1) SS-350-Z Cover and (1) ASN-250 Sleeve
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.2 in | 55.88 mm
- Weight
- 0.288488629093358 lbs
Length14 in | 355.6 mm
Width4 in | 101.6 mm
Voltage
- Voltage Rating
- 600 V
Dimensions
- Height BX (IN)
- 3.75
- Length (mm)
- 355.6
- Width BX (IN)
- 6.375
Height (mm)55.88
Weight BX (LB)2.179
Width (mm)101.6
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Additional Class Attributes
- Includes
- (1) SS-350-Z, (1) ASN-250
Number of Conductors2
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
InsulationEPDM
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 250 kcmil
- Expanded Conductor Range
- 250 kcmil - 1/0 Str
Conductor Range CU Stranded (Primary, run, main, line)250 kcmil
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-569-1
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
UPC Code78366985752
Color
- Color
- Black, Silver
Environment and Temperature
- Temperature Rating
- 90°C
Water tightYes
