Weidmuller 1186740000 WDK 10
Weidmuller 1186740000 WDK 10
- MPN: 1186740000
- PPN: WDM-1186740000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$9.24/ EA
Description

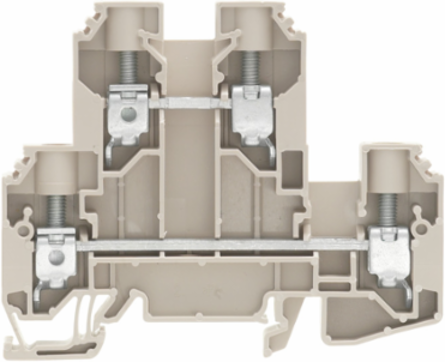

Feed-through terminal, Double-tier terminal, Screw connection, 10 mm², 800 V, 57 A, dark beige
Specifications
Approvals
- Approvals
- CSA, EAC, KEMAKEUR, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 9.9 mm
- Height
- 85 mm
- Depth
- 69 mm
- Depth including DIN rail
- 69.5 mm
Width (inches)0.39 inch
Height (inches)3.346 inch
Depth (inches)2.717 inch
Net weight39.64 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Current size C (CSA)
- 64 A
- Voltage size B (CSA)
- 600 V
- Voltage size D (CSA)
- 600 V
- Wire cross section min. (CSA)
- 18 AWG
Current size B (CSA)64 A
Current size D (CSA)5 A
Voltage size C (CSA)600 V
Wire cross section max. (CSA)6 AWG
Additional Technical Data
- Open sides
- right
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
System Specifications
- Version
- Screw connection, Double terminal, for screwable cross-connection, One end without connector
- Number of potentials
- 2
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels2
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 10 mm²
- Rated current
- 57 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 1.82 W
- Pollution severity
- 3
Rated voltage800 V
Current at maximum wires70 A
Volume resistance according to IEC 60947-7-x0.56 mΩ
Rated impulse withstand voltage8 kV
Surge voltage categoryIII
Conductors For Clamping (Rated Connection)
- Blade size
- 1.0 x 5.5 mm
- Clamping range, min.
- 1.5 mm²
- Connection cross-section, stranded, max.
- 16 mm²
- Connection direction
- on side
- Number of connections
- 4
- Tightening torque, max.
- 1.9 Nm
- Twin wire-end ferrules, max.
- 6 mm²
- Type of connection
- Screw connection
- Wire connection cross section AWG, min.
- AWG 16
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 16 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 16 mm²
- Wire connection cross-section, finely stranded, min.
- 1.5 mm²
- Wire connection cross-section, solid core, min.
- 1.5 mm²
Clamping range, max.16 mm²
Clamping screwM 4
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1B6
Stripping length12 mm
Tightening torque, min.1.2 Nm
Twin wire-end ferrules, min.1.5 mm²
Wire connection cross section AWG, max.AWG 6
Wire connection cross section, finely stranded, max.16 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.1.5 mm²
Wire connection cross-section, solid core, max.16 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 18 AWG
- Conductor size Field wiring min. (UR)
- 18 AWG
- Current size C (UR)
- 64 A
- Voltage size B (UR)
- 600 V
- Voltage size D (UR)
- 600 V
- Wire cross section min. (UR)
- 18 AWG
Conductor size Factory wiring max. (UR)6 AWG
Conductor size Field wiring max. (UR)6 AWG
Current size B (UR)64 A
Current size D (UR)5 A
Voltage size C (UR)600 V
Wire cross section max. (UR)6 AWG
