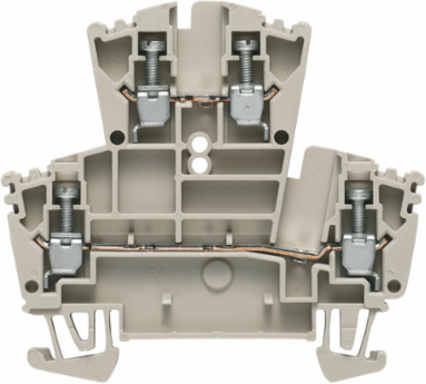

Weidmuller 1021500000 WDK 2.5
- MPN: 1021500000
- PPN: WDM-1021500000
CAD
$5.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Feed-through terminal, Double-tier terminal, Screw connection, 2.5 mm², 400 V, 24 A, dark beige
Documentation & Downloads
Specifications
Additional
- Rated Current
- 24 A
- Rated Impulse Withstand Voltage
- 6 kV
- Current at Maximum Wires
- 32 A
- Number of Connections
- 4
- Number of Potentials
- 2
- Height
- 69.5 mm
- Mounting Rail
- TS 35
- Material
- Wemid
- Color
- Dark Beige
- Approvals
- RoHS, UL Listed, CSA Certified, IECEx, ATEX, CE, CURUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, KEMAKEUR, LLOYDSREG, NEMKO, UR
- Certification ATEX
- DEMKO15ATEX1346U
- Certification CSA
- 12400-135
Rated Voltage400 V
Torque Tightening0.4 - 0.6 Nm
Clamping Range0.05 - 4 mm²
Number of Levels2
Width5.1 mm
Depth Including DIN Rail63 mm
Type of ConnectionScrew connection
UL 94 Flammability RatingV-0
Explosion-tested VersionYes
Certification IECEXIECEXULD15.0003U
Certification URE60693
