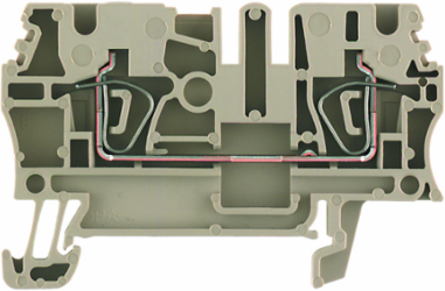

Weidmuller 1608510000 ZDU 2.5
- MPN: 1608510000
- PPN: WDM-1608510000
CAD
$2.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige
Documentation & Downloads
Specifications
Additional
- Rated Voltage
- 800 V
- Rated Current
- 24 A
- Current (IECEX)
- 22 A
- Rated Cross Section
- 2.5 mm²
- Wire Connection Cross Section AWG Range
- AWG 30 to AWG 12
- Max Voltage (ATEX)
- 550 V
- Max Wire Cross Section (ATEX)
- 4 mm²
- Rated Impulse Withstand Voltage
- 8 kV
- Blade Size
- 0.6 x 3.5 mm
- Number of Levels
- 1
- Number of Potentials
- 1
- Type of Mounting
- Snap-on
- Width
- 5.1 mm
- Depth
- 38.5 mm
- Net Weight
- 6.925 g
- Flammability Rating
- UL 94 V-0
- UL Certification
- E60693
- IECEx Certification
- IECEXULD15.0008U
- Explosion-tested Version
- Yes
Rated DC Voltage800 V
Current (ATEX)21 A
Current at Maximum Wires30 A
Wire Connection Cross Section Range0.05 mm² to 4 mm²
Voltage size C (CSA)600 V
Max Voltage (IECEX)550 V
Pollution Severity3
Power Loss0.77 W
Stripping Length10 mm
Number of Clamping Points per Level2
Mounting RailTS 35
Connection TypeTension-clamp
Height59.5 mm
Depth Including DIN Rail39.5 mm
MaterialWemid
RoHS ComplianceCompliant without exemption
CSA Certification200039-1152892
ATEX CertificationKEMA97ATEX2521U
ColorDark Beige
