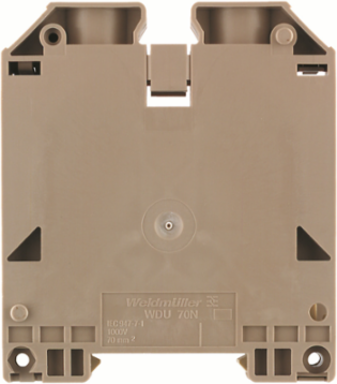

Weidmuller 1393420000 WDU 70N/35 IR
- MPN: 1393420000
- PPN: WDM-1393420000
CAD
$48.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Feed-through terminal, Screw connection, 70 mm², 1000 V, 192 A, dark beige
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 20.5 mm |
|---|---|
| Height | 75 mm |
| Depth | 85 mm |
| Depth including DIN rail | 86 mm |
| Width (inches) | 0.807 inch |
|---|---|
| Height (inches) | 2.953 inch |
| Depth (inches) | 3.346 inch |
| Net weight | 119.233 g |
Additional Technical Data
| Installation advice | Direct mounting |
|---|---|
| Open sides | closed |
| Number of similar terminals | 1 |
|---|---|
| Type of mounting | Snap-on |
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, for screwable cross-connection, in closed state |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
| End cover plate required | No |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | Yes |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 70 mm² |
|---|---|
| Rated current | 192 A |
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 6.14 W |
| Pollution severity | 3 |
| Rated voltage | 1,000 V |
|---|---|
| Current at maximum wires | 232 A |
| Volume resistance according to IEC 60947-7-x | 0.17 mΩ |
| Rated impulse withstand voltage | 8 kV |
Rating Data Iecex/Atex
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
|---|---|
| Max. voltage (ATEX) | 690 V |
| Wire cross section max. (ATEX) | 70 mm² |
| Current (IECEX) | 184 A |
| Marking EN 60079-7 | Ex eb II C Gb |
| Certificate No. (IECEX) | IECEXULD14.0005U |
|---|---|
| Current (ATEX) | 184 A |
| Max. voltage (IECEX) | 690 V |
| Wire cross section max. (IECEX) | 70 mm² |
| Ex 2014/34/EU label | II 2 G D |
Conductors For Clamping (Rated Connection)
| Blade size | TX 40 |
|---|---|
| Clamping range, min. | 16 mm² |
| Connection cross-section, stranded, max. | 95 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Tightening torque, max. | 12 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, min. | AWG 6 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 70 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 50 mm² |
| Wire connection cross-section, finely stranded, min. | 16 mm² |
| Wire connection cross-section, solid core, min. | 16 mm² |
| Clamping range, max. | 95 mm² |
|---|---|
| Clamping screw | M 8 |
| Connection cross-section, stranded, min. | 16 mm² |
| Gauge to IEC 60947-1 | B11 |
| Stripping length | 22 mm |
| Tightening torque, min. | 8 Nm |
| Wire connection cross section AWG, max. | AWG 2/0 |
| Wire connection cross section, finely stranded, max. | 70 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 16 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 6 AWG |
| Conductor size Field wiring min. (cURus) | 6 AWG |
| Voltage size C (cURus) | 600 V |
| Conductor size Factory wiring max. (cURus) | 0 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 0 AWG |
| Current size C (cURus) | 150 A |
