Weidmuller 1495690000 KRN-M20/-120
- MPN: 1495690000
- PPN: WDM-1495690000
CAD
$13.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

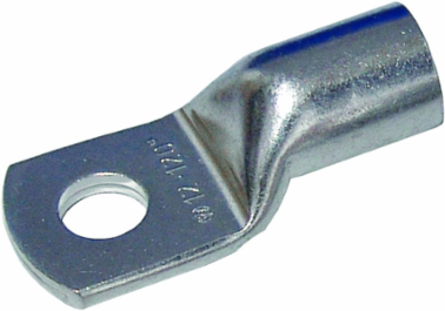

cable lug, terminal end,120 mm²
Documentation & Downloads
Specifications
Connectors

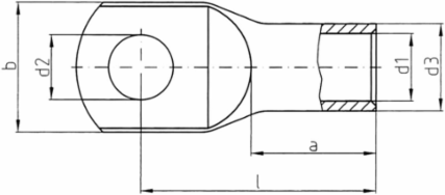

| Conductor cross-section | 120 mm² |
|---|---|
| Flange width (b) | 35 mm |
| Inside diameter of flange (d2) | 21 mm |
| Insulation | not available |
| Shaft length (a) | 26 mm |
| Connection length (I) | 60 mm |
|---|---|
| Hole | M 20 |
| Inside diameter of shaft (d1) | 15 mm |
| Outside diameter of shaft (d3) | 20 mm |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E354986 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Weight | 8.9 g |
|---|
| Net weight | 85.2 g |
|---|
Classifications
| ETIM 6.0 | EC001051 |
|---|---|
| eClass 9.0 | 27-40-02-05 |
| eClass 10.0 | 27-40-02-05 |
| ETIM 7.0 | EC001051 |
|---|---|
| eClass 9.1 | 27-40-02-05 |
Technical Data
| Version | Euro series, standard |
|---|
