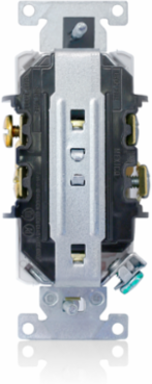

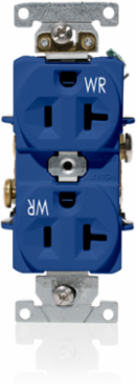

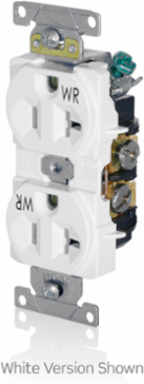

Leviton WBR20-BU Weather-Resistant Duplex Receptacle 20 Amp 125 Volt, Heavy-Duty Grade, Blue
Leviton WBR20-BU Weather-Resistant Duplex Receptacle 20 Amp 125 Volt, Heavy-Duty Grade, Blue
- MPN: WBR20-BU
- UPC: 078477907757
- PPN: LEV-WBR20-BU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.45/ EA
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather-Resistant, Indented Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Blue
Specifications
Material Specifications
- Body Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 hex head, triple drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Strap Material
- Steel
- Terminal Clamps
- Brass
- Terminal Screws
- #8 Triple-Drive Brass
- Wire Type
- Stranded or Solid
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Line Contacts0.030" Phosphor Bronze
Product IDRatings are permanently marked on device
Terminal Accom.#14 AWG - #10 AWG
Terminal IDBrass - Hot, Green - Ground, Silver - Neutral
TerminationBack or Side Wire
Mechanical Specifications
- Color
- Blue
- Device Type
- Duplex Receptacle Outlet
- Feature 2
- Weather-Resistant
- Grade
- Heavy-Duty Industrial Specification Grade
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass - Hot, Green - Ground, Silver - Neutral
- Wire Type
- Stranded or Solid
Color / FeatureBlack
FeatureWeather-Resistant
Feature 4Indented Face
Product IDRatings are permanently marked on device
Terminal Accom.#14 AWG - #10 AWG
TerminationBack or Side Wire
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
AC Horsepower Rating
- Amperage
- 20 A
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Dielectric VoltageWithstands 3000 V minimum
Horsepower Rating1 HP
Temperature RiseMax 30 °C after 250 cycles OL at 200 percent rated current
Wire3
Warranty
- Horsepower Rating
- 1 HP
Warranty10-Year Limited
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Flammability
- Rated V-0 per UL 94
- Ground Contacts
- 0.030" Brass
- Line Contacts
- 0.030" Phosphor Bronze
- Operating Temperature
- -40°C to 75°C
- Terminal Clamps
- Brass
Face MaterialPBT Polyester Blend
Ground ClipsBrass
Grounding Screw#8 hex head, triple drive Brass
Mounting ScrewsTriple-Drive Plated Steel
Strap MaterialSteel
Terminal Screws#8 Triple-Drive Brass
Electrical Specifications
- Amperage
- 20 A
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 75°C
- Temperature Rise
- Max 30 °C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Dielectric VoltageWithstands 3000 V minimum
GroundingSelf-Grounding
Pole2
Voltage125 VAC
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
