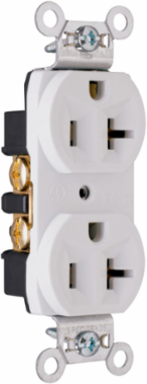

Pass & Seymour CRB5362W 20A 125V Commercial Duplex Receptacle, Back/Screw Wire, White, 0.78 Inch Depth, 2.635 Inch Height
- MPN: CRB5362W
- UPC: 785007210231
- PPN: P-S-CRB5362W
CAD
$9.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Commercial Duplex Receptacle, Back/Screw Wire, White, 0.78 Inch Depth, 2.635 Inch Height
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Operating Temperature | -40 C to 60 C |
| Number of Receptacles | 2 |
| Connection Location | Back and Side |
| Height | 2.635 in |
| Depth | 0.78 in |
| Material | Nylon face, Thermoplastic back body, Plated steel strap, Brass contacts |
| Contact Type | Triple-wipe brass |
| Standard | UL 498, FEDSPEC |
| Outlet Type | Straight Blade |
| Country of Origin | Mexico |
| Application Sector | Commercial |
| Is Weather Resistant | No |
| Voltage | 125 V |
|---|---|
| Number of Poles | Double Pole |
| Wire Size | 14 - 10 AWG |
| Wire Connection Type | Internal Pressure Plates, Screw Terminals |
| Width | 1.322 in |
| Finish | Matte |
| Mounting Strap | Corrosion-resistant plated steel |
| Auto-Ground | Yes |
| NEMA Configuration Code | 5-20R |
| Color | White |
| Indoor/Outdoor | Indoor |
| Is Tamper-Resistant | No |
