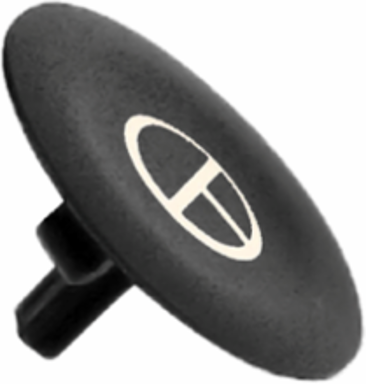

Schneider Electric ZBA345 Round Pushbutton Cap 22 mm with White 'T' Marking
- MPN: ZBA345
- PPN: SCH-ZBA345
CAD
$3.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony ZB, flush green marked push button cap has a round shape with "T" symbol. This push button cap provides an ergonomic interface for controlling your machine thanks to its flush element. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico
Physical Attributes
- Cap Operator Or Lens Color
- green
Important Information Attributes
- Customizable
- 1, no
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0127097219
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.0395407186
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Marking
- white T
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- User Language
- International
- X C Menu
- push-button
- Pep Code
- ENVPEP2312047EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Destination
- push-button head
- Cap/Operator Or Lens Colour
- green
- Package Weight(Lbs)
- 1.000 g
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.0006538248, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0002297652, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Main Grouppush-button
Operator Profileflush
Quantity Per Setset of 1
Sale Per Indivisible Quantity10
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
Cap Operator Or Lens Colorgreen
Marking 1 MarkingT
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis push button cap provides an ergonomic interface for controlling your machine. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Categorymarking accessory
Accessory / Separate Part Typemarked push-button cap
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.0531340305
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2312047EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2312047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
ETIM
- ETIM 8
- EC001072
ETIM 9EC001072
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
