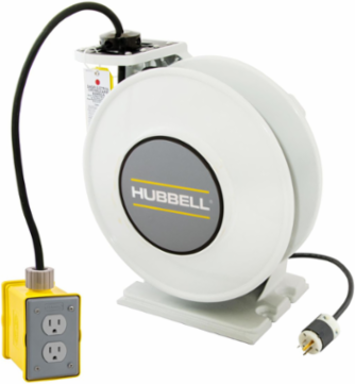

Hubbell Wiring Device-Kellems HBLI45143R15 White Industrial Cord Reel with 45 Ft #14/3 SJO, 15A, 125 VAC
- MPN: HBLI45143R15
- UPC: 783585669090
- PPN: HBL-HBLI45143R15
- UNSPSC: 26121635
CAD
$2210.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
White Industrial Reel with Yellow Portable Outlet Box and (1) 15A Duplex Receptacle, UL Type 1, 45 Ft, #14/3 SJO, 15 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBLI45143R15 AutoCAD Drawing |
|---|---|
| General Literature Asset 3 Display Text | Cord Reels |
| Replaced Catalog Number | HBL45123R |
| Cable Length | 45 Ft |
| Width | 14.600 in |
| Application | Industrial |
| Cable Type | #14/3 SJO |
| Type | Reel With Duplex Receptacle(s) |
| General Literature Asset 1 Display Text | Cord Reels |
| Style | Two Outlets |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A510 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 31.900 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet - GTIN - Package | 70783585669099 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 2 Display Text | Plenum Rated Cord Reel Enclosure |
|---|---|
| Description - Invoice | IND REEL, W/(1) DPLX, 45' SJO, 14/3, WH |
| Country of Origin | Mexico |
| Current / Amperage Rating | 15 A |
| Industry Standard(s) | cULus Listed |
| Cable Active Length | 45 Ft |
| Standard | cULus Listed |
| Voltage Rating | 125 VAC |
| Number Of Wires | 3-Wire |
| Class Code | A52 |
| Harmonization Code | 8544429090 |
| MSDS Flag | No |
| Series | inREACH® Series |
| BOX SIZE | 16.900x16.600x14.600 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585669090 |
| Case Weight | 31.900 lb. |
| Pallet Height | 33.800 in |
| Pallet Weight | 446.600 lb. |
| NAICS Code | 335931A107 |
