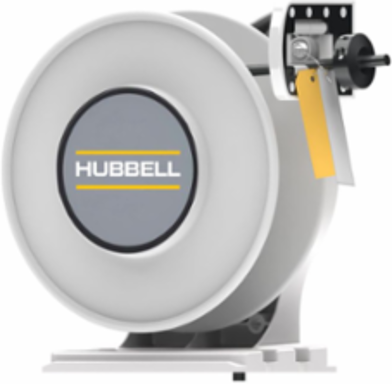

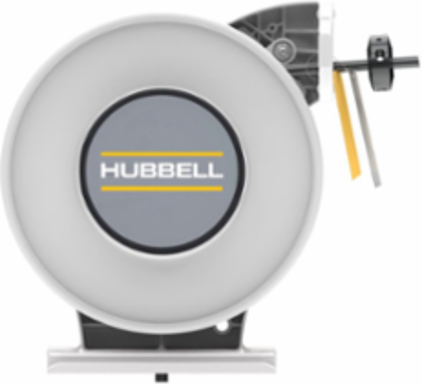

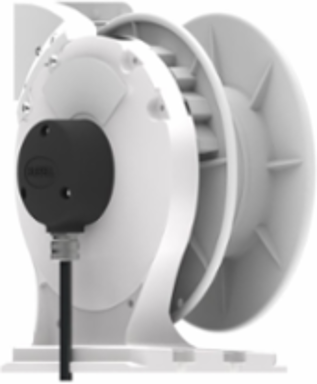

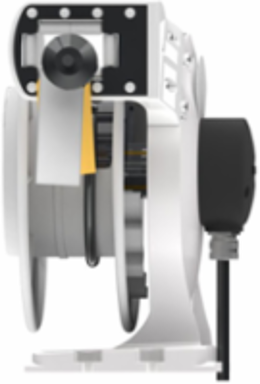

Hubbell Wiring Device-Kellems HBLI45123 Industrial Cord Reel, UL Type 1, 45 Ft, #12/3 SJO, 20 A, 250 VAC
- MPN: HBLI45123
- UPC: 783585669175
- PPN: HBL-HBLI45123
- UNSPSC: 26121635
CAD
$2105.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
White Industrial Reel, UL Type 1, 45 Ft, #12/3 SJO, 20 A, 250 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- cULus Listed
- Cable Active Length
- 45 Ft
- Standard
- cULus Listed
- Voltage Rating
- 250 VAC
- Engineering Drawing 1 Display Text
- HBLI45123 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Plenum Rated Cord Reel Enclosure
- Number Of Wires
- 3-Wire
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL45123W
- Series
- inREACH® Series
- BOX SIZE
- 16.800x16.400x14.300 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585669175
- Case Weight
- 30.800 lb.
- Pallet - Pack Description
- Pallet
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Cable Length45 Ft
Width14.600 in
ApplicationIndustrial
Cable Type#12/3 SJO
TypeStandard Reel With Leads
Voltage Rating Description250 VAC
General Literature Asset 1 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
General Literature Asset 3 Display TextCord Reels
StyleLeaded
Description - InvoiceIND REEL, UL TYPE 1, 45' SJO, 12/3, WH
Harmonization Code8544493080
MSDS FlagNo
Sub Class CodeA52A510
Base Unit of MeasureEA
Carton - Gross Weight per Pack23.735 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet - GTIN - Package70783585669174
Pallet Height34.000 in
Pallet Weight496.800 lb.
NAICS Code335931A107
Certifications
- EU RoHS Indicator
- Contact Manufacturer
