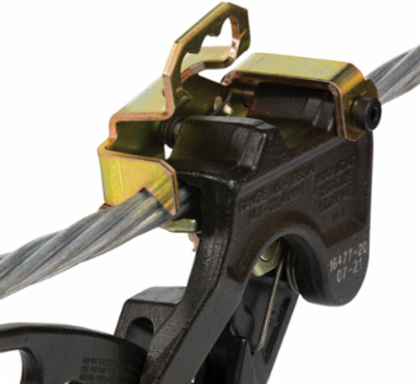

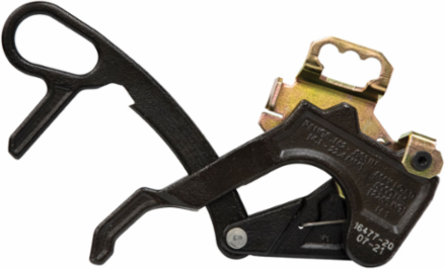

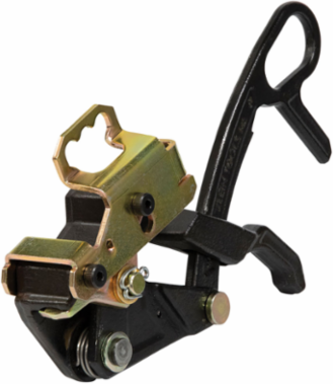

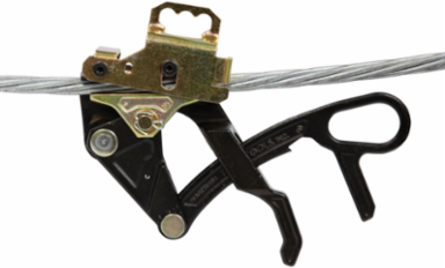

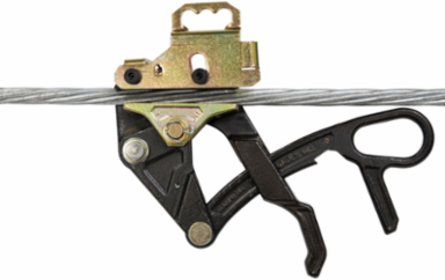

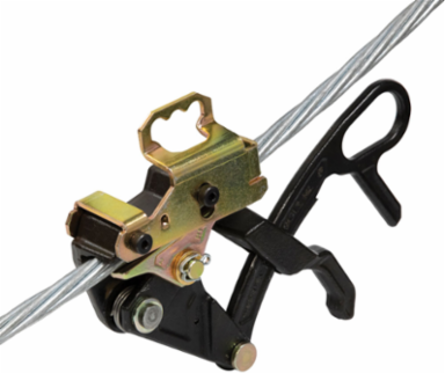

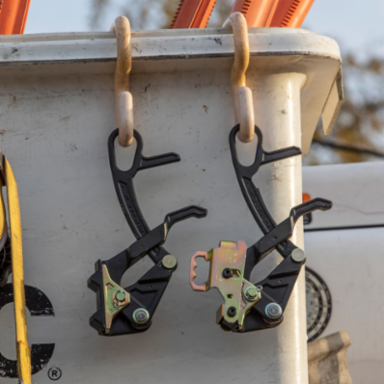

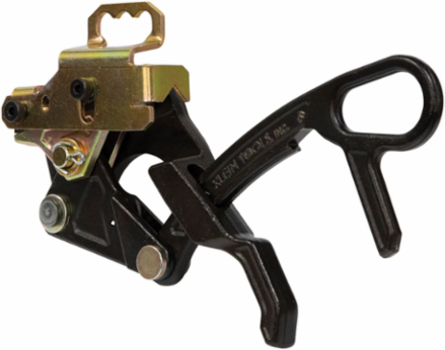

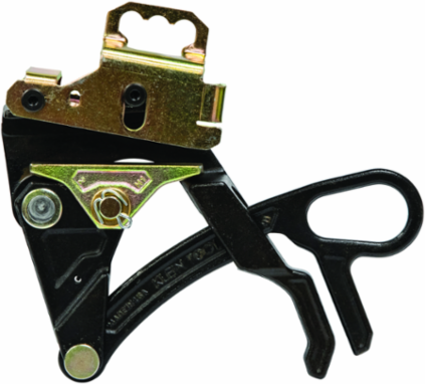

Klein Tools 16477-20 Wide Range Distribution Grip, 5000 lb Max Load, 0.162-0.883 Inch Cable Diameter
- MPN: 16477-20
- UPC: 092644470738
- PPN: KLT-16477-20
- UNSPSC: 27111712
CAD
$547.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than the Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Design includes a latch to help maintain cable position in grip jaws. Made in the USA, this grip has a maximum safe load of 5000-Pound.
Features

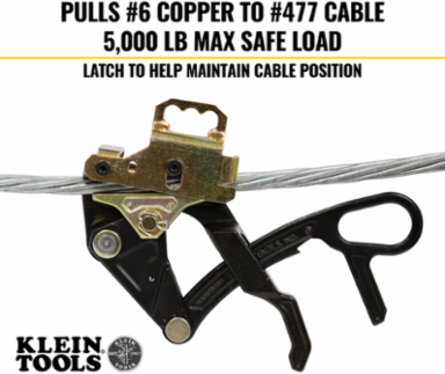

- Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
- 20-Percent lighter than the Cat. No. KT4500 grip
- One-handed design makes for easier actuation
- Made in the USA
- Spring closes grip on cable to hold the initial position

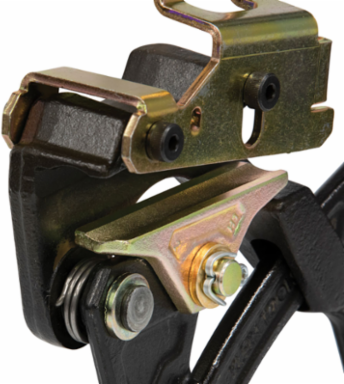

- Includes a latch to help maintain cable position in the grip jaw
- Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 5000-Pound (2268 kg)
- Patent pending design
- Hot Latch, One-Handed Grip
Documentation & Downloads
Specifications
Key Specifications
| Locking Handle | Yes |
|---|---|
| Hot Latch | Yes |
| Spring | Yes |
| Swing Latch | No |
| Cable Diameter | 0.162 to 0.883" (4.11 to 22.42 mm) |
| Teeth Type | Fine |
| Overall Width (Inch) | 1.75 |
| Overall Length (Inch) | 10.25 |
| Jaw Length (Inch) | 3.31 |
| Maximum Safe Load (kg) | 2268 |
| Jaw Length (cm) | 8.4 |
| Weight (kg) | 1.5 |
| Width | 7.3100 in |
| Weight | 2.9000 lbs |
| Cable Type | Copper, AAC, ACSR |
|---|---|
| Material | Steel |
| Jaw Type | Round |
| Application | Wire Pulling |
| Type | Parallel Jaw Grip |
| Overall Width (cm) | 4.4 |
| Overall Height (Inch) | 8 |
| Maximum Safe Load (lb) | 5000 |
| Overall Length (cm) | 26 |
| Weight (lb) | 3.2 |
| Overall Height (cm) | 20.3 |
| Height | 2.3000 in |
| Depth | 8.6800 in |
