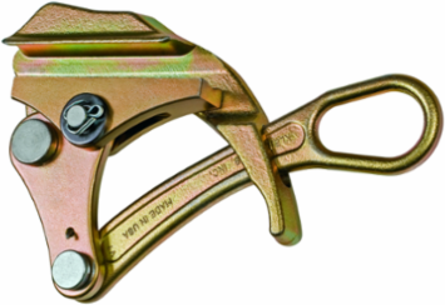

Klein Tools KT4600 Parallel Jaw Grip 0.3 to 0.8 Inch Cable Diameter, 10,000 lb Max Load
- MPN: KT4600
- UPC: 092644477539
- PPN: KLT-KT4600
- UNSPSC: 27111712
CAD
$471.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round serrated jaw to firmly grip insulated cables and conductors. A hot latch closed automatically to guard against grip accidently disengaging from wire. A large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks.
Features
- Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
- Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
- Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Max Safe Load of 10,000-Pound (4536 kg)
- Made in USA
- Spring
Documentation & Downloads
Specifications
Key Specifications
- Cable Type
- ACSR, AAC, Copper
- Jaw Type
- Round
- Type
- Parallel Jaw Grip
- Hot Latch
- No
- Locking Handle
- No
- Teeth Type
- Coarse
- Overall Width (Inch)
- 5
- Overall Length (Inch)
- 13
- Jaw Length (Inch)
- 5
- Maximum Safe Load (kg)
- 4535.9
- Jaw Length (cm)
- 12.7
- Weight (kg)
- 3.2
- Width
- 5.0000 in
- Weight
- 7.0000 lbs
Cable Diameter0.3" to 0.8" (7.62 to 20.3 mm)
MaterialSteel
ApplicationWire Pulling
SpringYes
Swing LatchNo
Overall Width (cm)12.7
Overall Height (Inch)1.5
Maximum Safe Load (lb)10000
Overall Length (cm)33
Weight (lb)7
Overall Height (cm)3.8
Height1.5000 in
Depth13.0000 in
