Weidmuller

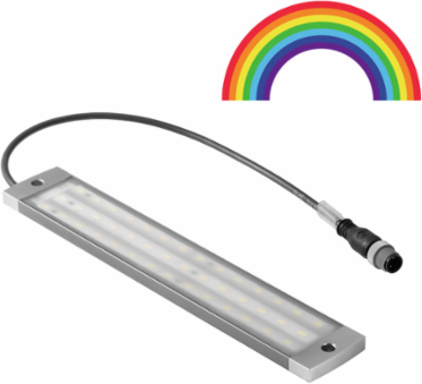

Weidmuller 2635090000 WIL-240-RGBW-M12G-0.3U-S

  • MPN: 2635090000
  • PPN: WDM-2635090000

CAD

$550.09

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

WIL-240-RGBW-M12G-0.3U-S

Specifications

Approvals

ApprovalsCE
ROHSConform

Dimensions And Weights

Width240 mm
Height8 mm
Depth40 mm
Net weight200 g
Width (inches)9.449 inch
Height (inches)0.315 inch
Depth (inches)1.575 inch

Connection Data

Versionpin, straight
Connection threadM12
WiringPin 1 (Strand: brown) control red LED, Pin 2 (Strand: white) control green LED, Pin 3 (Strand: blue), Pin 4 (Strand: black) control blue LED, Pin 5 (Strand: grey) control white LED
CodingA
Tightening torque0.8 Nm

General Technical Data

Number of LEDs42
Emitting angle40 °
Type of mountingScrew mounting
Impact resistanceIK05
Light colour (CCT)Blue, White, Red, Green
Operating life60.000 h
Drill hole spacing225 mm
Protection degreeIP67

Cable Technical Specifications

Cable MaterialPUR
Cable length0.3 m
Sheathing colourblack

Electric Data

Rated voltage (text)24 V DC
Power8,5 W
Rated current0,36 A
DimmableYes

Material Data

Housing main materialhard anodised aluminium
Threaded ring materialPA
Encapsulation compoundPUR V0
Material of end capsDiecast zinc, nickel-plated

Classifications

ETIM 6.0EC001959
eClass 9.027-11-06-40
eClass 10.027-11-06-40
ETIM 7.0EC001959
eClass 9.127-11-06-40

Environmental Product Compliance

REACH SVHCLead 7439-92-1
WIL-240-RGBW-M12G-0.3U-S
WIL-240-RGBW-M12G-0.3U-S
