Thomas & Betts K655DLR-J0300-SG3 25KV DB ELBOW 600A W-SEALING KIT

MPN: K655DLR-J0300-SG3
UPC: 075114334037
PPN: T-B-K655DLR-J0300-SG3
UNSPSC: 39121421

$1156.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kv, 600 Amps, Deadbreak Direct Test Elbow without Test Point. With Cold-Shrinkable Jacket with Copper Braid and Constant Force Spring. Universal Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded 350 Compacted, Solid 400.

Specifications

Additional Information

Application	15/25kV, 600 Amps
Color	Black
Effective Date	20170323

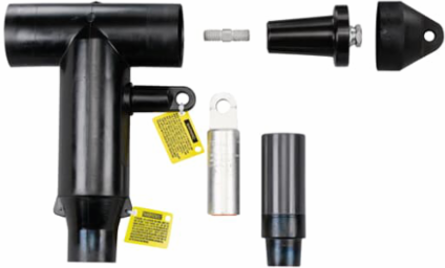

Includes	1 Elbow Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Cable adapter, 1 Crimp Chart, Installation Instruction Sheets
Material	Housing - EPDM Rubber
Product Type	Deadbreak Direct Test Elbow Connector
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	600 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR
Size	Cable Insulation Diameter 0.980 inch to 1.180 inch.
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
