Ideal Industries

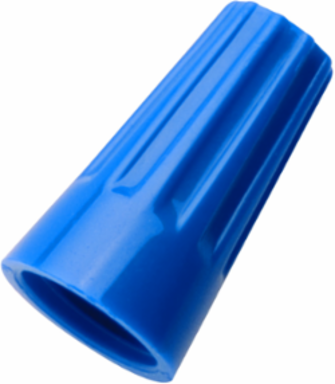

Ideal Industries 30-072 Wire-Nut® Connector Model 72B® Blue, for #22 to #6 Gauge Wire, Box of 100

Wire-Nut® Connector Model 72B® Blue, for #22 to #6 Gauge Wire, Box of 100
  • MPN: 30-072
  • PPN: IDL-30-072
In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$19.05/ EA

Description

The connector that started it all, an American Classic.The IDEAL Wire-Nut® Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut® Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B®, 72B®, and 73B®, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs.

Features

  • The American Classic since 1928
  • Rated for use in Air Handling Spaces
  • Fixed, square-wire spring for a grip that will last
  • Refined range to handle all common applications
  • Positive grip shell that is perfect to twist-on with fingers
  • Excellent for fine stranded wire applications
  • Approved for bonding and grounding applications

Specifications

Wire Gauge Range
#22 to #16
Dimensions A
0.39 in (10 mm)
Housing Material
Polypropylene (UL 94V-2 Flame Rated)
Plating
Zinc
Environmental Rating
Rated for use in Air Handling Spaces
Voltage Rating300V max
Dimensions B0.70 in (18 mm)
Insert MaterialSteel
ComplianceUL Listed (UL 486C), CSA Certified (C22.2 No. 188), RoHS Compliant
Model72B Blue
