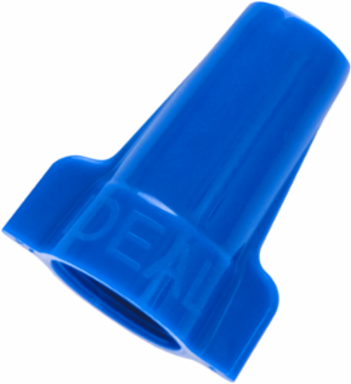

Wing-Nut® Wire Connector, Model 454® Blue, Box of 25 - Grit 10, Flame-Retardant Shell
Ideal Industries

Ideal Industries 30-454 Wing-Nut® Wire Connector, Model 454® Blue, Box of 25 - Grit 10, Flame-Retardant Shell

  • MPN: 30-454
  • UPC: 624141304546
  • PPN: IDL-30-454

CAD

$68.06

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

More power with every twist.The Wing-Nut® Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut® also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.The Red Model 452® offers the widest range winged connector in the industry from 2 #18 to 4 #10.

Features

  • High-leverage, contoured wing design provides superior torque on every twist
  • Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
  • Copolymer shell expands for smooth, progressive tightening providing dependable connections
  • Removable for repeat usage on same size or larger combinations

Documentation & Downloads

Specifications

Additional

Voltage
600V Max
Strip Length
7/8 in
Material
Thermoplastic Polyester housing, Steel insert, Zinc plating, Flame-retardant copolymer shell
Compliance
UL 486 C, CSA C22.2 No. 188, RoHS, IEC 998-2-4
Wire Range#16 to #6 AWG
Temperature Rating105°C (221°F)
Flame RatingUL 94V-2
