Woodhead 511004045 Aero-Motive Wire Rope Festoon System 13.11m (43.0') with 4 Cars, Flat Cable
- MPN: 511004045
- PPN: WOD-511004045
CAD
$970.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

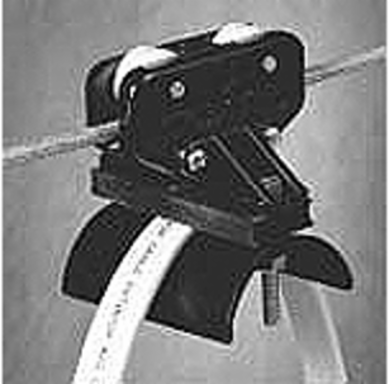

Aero-Motive Wire Rope Festoon System 13.11m (43.0') with 4 Cars, Flat Cable
Documentation & Downloads
Specifications
General
| Product Family | Festoons |
|---|---|
| Product Name | Aero-Motive® |
| Depth | 51.40mm (2.024") |
| Height | 127.00mm (5.000") |
| Cable Width - Maximum | 60.45mm (2.380") |
| Overview | Aero-Motive® Wire-Rope Festoon Systems |
| Length | 115.06mm (4.530") |
| Component Type | Festoon System |
| System Length | 12.01m (39.40' ) |
|---|---|
| Cable Height - Maximum | 6.86mm (.270") |
| Duty | Light |
| UPC | 78678863129 |
| Series | 130125 |
| Type | Wire Rope |
| Combined Cable Weight-Max./Car | 4.08kg (9.0 lb) |
Physical
| Material - Wheel | Steel - Sealed Ball Bearing |
|---|---|
| Material - Resin | Nylon |
| Material - Metal | N/A |
| Storage Length | 0.54m (1.78') |
| Number of Cars | 4 |
| Packaging Type | Individual Carton |
| Saddle Radius | 35.05mm (1.380") |
|---|---|
| Wire/Cable Type | Flat |
| Travel Speed - Maximum | 121.92 mpm (400 fpm) |
| Working Travel | 13.11m (43.0') |
| Thread Size | N/A |
| Loop Depth | 1.22m (4.0') |
Material Info
| Engineering Number | 511004045 |
|---|
