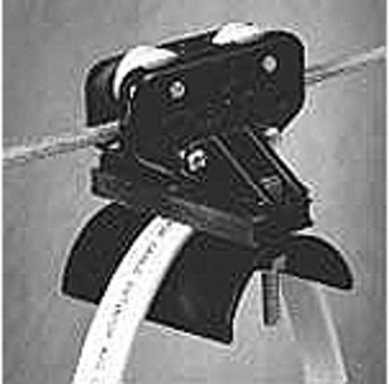

Woodhead 511002025 Wire Rope Festoon System Kit, 7.92m (26.0'), 2 Cars, Nylon, Max Weight 4.08kg
- MPN: 511002025
- UPC: 078678863128
- PPN: WOD-511002025
CAD
$664.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire Rope Festoon System Kit, 7.92m (26.0'), 2 Cars, Nylon, Max Weight 4.08kg
Documentation & Downloads
Specifications
General
| Cable Height - Maximum | 6.86mm (.270") |
|---|---|
| Series | 130125 |
| Height | 127.00mm (5.000") |
| Depth | 51.40mm (2.024") |
| Component Type | Wire Rope Hardware Kit |
| Length | 115.06mm (4.530") |
| Product Name | Aero-Motive® |
| Cable Width - Maximum | 60.45mm (2.380") |
| UPC | 78678863128 |
|---|---|
| Product Family | Festoons |
| System Length | 7.13m (23.40' ) |
| Overview | Aero-Motive® Wire-Rope Festoon Systems |
| Type | Wire Rope |
| Duty | Light |
| Combined Cable Weight-Max./Car | 4.08kg (9.0 lb) |
Physical
| Number of Cars | 2 |
|---|---|
| Working Travel | 7.92m (26.0') |
| Material - Metal | N/A |
| Thread Size | N/A |
| Loop Depth | 1.22m (4.0') |
| Saddle Radius | 35.05mm (1.380") |
| Material - Resin | Nylon |
|---|---|
| Travel Speed - Maximum | 121.92 mpm (400 fpm) |
| Packaging Type | Individual Carton |
| Material - Wheel | Steel - Sealed Ball Bearing |
| Wire/Cable Type | Flat |
| Storage Length | 0.33m (1.07') |
Material Info
| Engineering Number | 511002025 |
|---|
