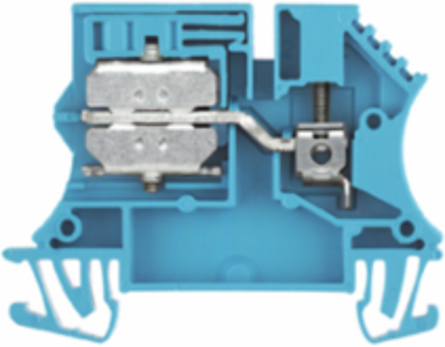

Weidmuller 1010680000 WNT 2.5 10X3
- MPN: 1010680000
- PPN: WDM-1010680000
CAD
$6.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Neutral conductor disconnect terminal, Busbar connection, 2.5 mm², 400 V, 24 A, sliding, blue
Documentation & Downloads
Specifications
Approvals
- Approvals
- BBJ, CE, CSA, DNV GL, EAC, GERMLLOYD, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 60 mm
- Depth
- 46.5 mm
- Depth including DIN rail
- 47 mm
Width (inches)0.201 inch
Height (inches)2.362 inch
Depth (inches)1.831 inch
Net weight12.61 g
Csa Rating Data
- Certificate No. (CSA)
- 12400-116
- Voltage size C (CSA)
- 600 V
- Wire cross section min. (CSA)
- 26 AWG
Current size C (CSA)20 A
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceBusbar
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblue
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, with busbar connection 10x3, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 1
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionYes
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- sliding
For N-busbar10 x 3 mm
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 2.5 mm²
Pe Rating Data
- PEN function
- No
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Standards
- In accordance with IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage400 V
Current at maximum wires32 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage6 kV
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 1
- Tightening torque, max.
- 0.6 Nm
- Torque level with DMS electric screwdriver
- 1
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A3
Stripping length10 mm
Tightening torque, min.0.4 Nm
Type of connectionBusbar connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size C (UR)
- 600 V
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size C (UR)25 A
