Weidmuller 1718550000 WNT 35N 10X3
- MPN: 1718550000
- PPN: WDM-1718550000
CAD
$12.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

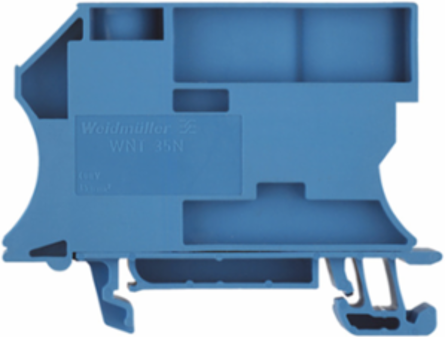

Neutral conductor disconnect terminal, Busbar connection, 35 mm², 400 V, 125 A, sliding, blue
Documentation & Downloads
Specifications
Approvals
| Approvals | BBJ, CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 16 mm |
|---|---|
| Height | 66 mm |
| Depth | 50.5 mm |
| Depth including DIN rail | 51 mm |
| Width (inches) | 0.63 inch |
|---|---|
| Height (inches) | 2.598 inch |
| Depth (inches) | 1.988 inch |
| Net weight | 63.9 g |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Number of similar terminals | 1 |
| Type of mounting | Snap-on |
| Installation advice | Busbar |
|---|---|
| Open sides | closed |
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | blue |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000902 |
|---|---|
| eClass 9.0 | 27-14-11-26 |
| eClass 10.0 | 27-14-11-26 |
| ETIM 7.0 | EC000902 |
|---|---|
| eClass 9.1 | 27-14-11-26 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, with busbar connection 10x3, in closed state |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 1 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
| End cover plate required | No |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | Yes |
| PEN function | No |
Disconnect Terminals
| Cross-disconnect | without |
|---|---|
| Slitting | sliding |
| For N-busbar | 10 x 3 mm |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Conductors For Clamping (Additional Connection)
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 35 mm² |
|---|
Pe Rating Data
| PEN function | No |
|---|
Rating Data
| Rated cross-section | 35 mm² |
|---|---|
| Rated current | 125 A |
| Standards | In accordance with IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
| Rated voltage | 400 V |
|---|---|
| Current at maximum wires | 140 A |
| Volume resistance according to IEC 60947-7-x | 0.26 mΩ |
| Rated impulse withstand voltage | 6 kV |
Conductors For Clamping (Rated Connection)
| Blade size | 6.5 x 1.2 mm |
|---|---|
| Clamping range, min. | 2.5 mm² |
| Connection cross-section, stranded, max. | 50 mm² |
| Connection direction | on side |
| Number of connections | 1 |
| Tightening torque, max. | 5 Nm |
| Type of connection | Busbar connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 35 mm² |
| Wire connection cross-section, finely stranded, min. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 2.5 mm² |
| Clamping range, max. | 50 mm² |
|---|---|
| Clamping screw | M 6 |
| Connection cross-section, stranded, min. | 2.5 mm² |
| Gauge to IEC 60947-1 | B8 |
| Stripping length | 18 mm |
| Tightening torque, min. | 4 Nm |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
