Weidmuller 9512210000 WNT 70N/35
- MPN: 9512210000
- PPN: WDM-9512210000
CAD
$47.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

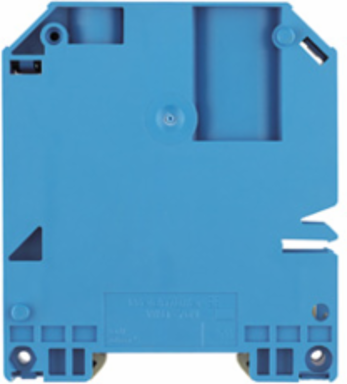

Neutral conductor disconnect terminal, Busbar connection, 70 mm², 400 V, 140 A, sliding, blue
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 20.5 mm
- Height
- 75 mm
- Depth
- 85 mm
- Depth including DIN rail
- 86 mm
Width (inches)0.807 inch
Height (inches)2.953 inch
Depth (inches)3.346 inch
Net weight138.4 g
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceBusbar
Open sidesclosed
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblue
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, with busbar connection 10x3, in closed state
- Number of potentials
- 1
- Number of clamping points per level
- 1
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredNo
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionYes
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- sliding
For N-busbar10 x 3 mm
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 70 mm²
Pe Rating Data
- PEN function
- No
Rating Data
- Rated cross-section
- 70 mm²
- Rated current
- 140 A
- Standards
- In accordance with IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 6.14 W
- Pollution severity
- 3
Rated voltage400 V
Current at maximum wires140 A
Volume resistance according to IEC 60947-7-x0.17 mΩ
Rated impulse withstand voltage6 kV
Conductors For Clamping (Rated Connection)
- Blade size
- S6 (DIN 6911)
- Clamping range, min.
- 10 mm²
- Connection cross-section, stranded, max.
- 95 mm²
- Connection direction
- on side
- Number of connections
- 1
- Tightening torque, max.
- 12 Nm
- Type of connection
- Busbar connection
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 70 mm²
- Wire connection cross-section, finely stranded, min.
- 10 mm²
- Wire connection cross-section, solid core, min.
- 10 mm²
Clamping range, max.95 mm²
Clamping screwM 8
Connection cross-section, stranded, min.10 mm²
Gauge to IEC 60947-1B11
Stripping length22 mm
Tightening torque, min.6 Nm
Wire connection cross section, finely stranded, max.70 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.10 mm²
Wire connection cross-section, solid core, max.16 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 6 AWG
- Conductor size Field wiring min. (UR)
- 6 AWG
- Voltage size C (UR)
- 600 V
Conductor size Factory wiring max. (UR)00 AWG
Conductor size Field wiring max. (UR)00 AWG
Current size C (UR)175 A
