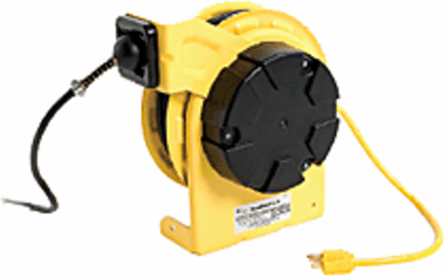

Woodhead 980-1547 Standard Cord Reel 16/3 SJTOW, 50 Ft Cord Length, NEMA 5-15, 15A
- MPN: 980-1547
- PPN: WOD-980-1547
CAD
$1034.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Standard Cord Reel 16/3 SJTOW, 50 Ft Cord Length, NEMA 5-15, 15A
Documentation & Downloads
Specifications
Material Info
- Engineering Number
- 980-1547
Agency Certification
- UL
- E22769
Electrical
- Cord Type
- 16/3 SJTOW
- Voltage - Maximum
- 120V
- On/Off Switch
- No
- Lamp Wattage - Maximum
- N/A
GFCINo
Bulb IncludedN/A
Lamp TypeN/A
Current - Maximum per Contact8.0A
Physical
- Cord Length
- 15.24m (50.0')
- Material - Housing
- Steel/Polycarbonate
- Number of Receptacles
- 1
- Drum Lock
- Ratchet
- Primary Cord/Cable Entry
- N/A
- Wire Size AWG
- 16
- Number of Conductors
- 3
Cable MovementRatchet Lock
Mounting StyleRigid
Packaging TypeCarton
Guide Arm2 - Position
Retraction Weight1.4kg (3.0 lb)
Material - CoatingPowder Coating
General
- Height
- 0.36m (14.25")
- Cable Length
- 0.457m (1.50')
- Duty
- Standard
- Series
- 130091
- Type
- Cord Reel
- Enclosure Rating
- NEMA 1
- Product Name
- Super-Safeway™
Depth0.30m (11.75")
OverviewElectric Reels
NEMA ConfigurationNEMA 5-15
Product FamilyElectric Reels
Width196.85mm (7.750")
UPC78678833617
